Products
Thermotech
Degreasing Machine
■Vacuum Degreasing Machine Clean Master J
1. Save energy and reduce environmental impact
- Solvent is efficiently recovered through high performance distillation recycler
2. Uses less than 1/5 the solvent of conventional systems
- Exempt from fire safety regulations because proprietary solvent circulation recycling system (patent pending) reduces solvent volume to less than 280 liters
3. Four cleaning functions
- Four cleaning functions keep foreign materials off product surfaces. Wide variety of products can be washed.
- Movable jet nozzles improve cleaning performance.
- Prevent re-adherence of particulate foreign matter.
4. Small footprint
- Installation possible in 55% of space required for NVD-10E (including maintenance space).
- All-in-one design for easy transport and installation so upgrading existing facilities is simple.
Four cleaning functions
●Jet
Contamination is removed by high-pressure. high-speed spray.
- Movable shower nozzle
- Operation pattern can be set as desired
- Maximum spraying pressure: 3 Mpa
●Shower
Cleaning liquid is sprayed at high flow rate from upper side to remove large contamination. Primary shower: Rough cleaning Rinse shower: Finishing cleaning
●Spray
Contamination is removed by fine droplets sprayed at high pressure.
- A unit of high-pressure spray nozzle and heat exchanger is installed at the bottom of the cleaning room
- Maximum spray pressure: 5 Mpa
●Vaper
Contamination is removed completely by vapor cleaning liquid.
- A unit of high-pressure spray nozzle and heat exchanger is installed at the bottom of the cleaning room
- Maximum spray pressure: 5 Mpa
Exterior dimensions

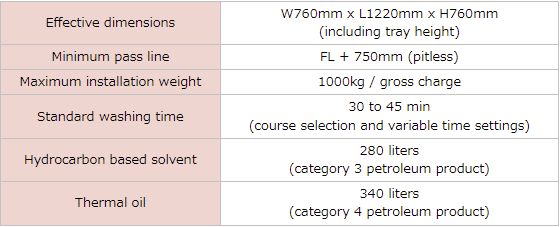

Standard specifications
カタログダウンロード
Catalog Download
