Thermotech
Coating Service
■Coating Service Information

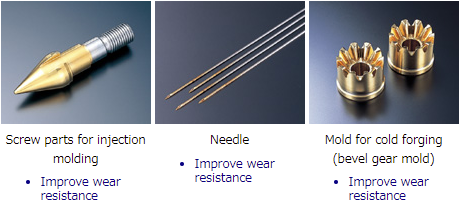

Application example of TiN

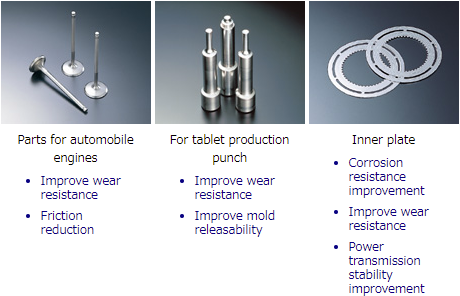

Application example of TiCN

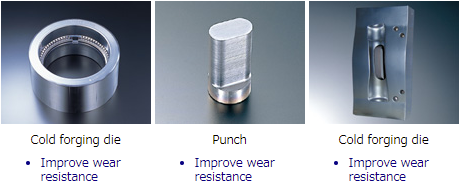

Application example of CrN

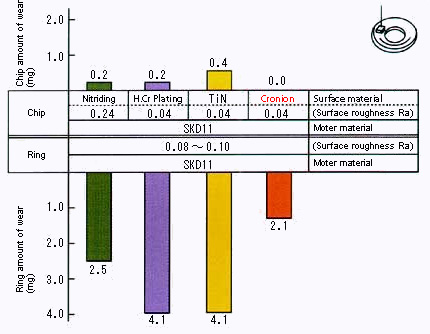

Friction and wear properties of the CrN coating
●● Cronion is nachi CrN coating name ● CrN does not attack the contact material and does not wear itself

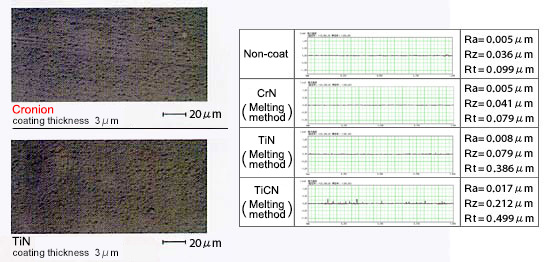

Comparison of surface roughness
●material : High Speed Steel SKH57 Roughness of the surface processing before 0.8S

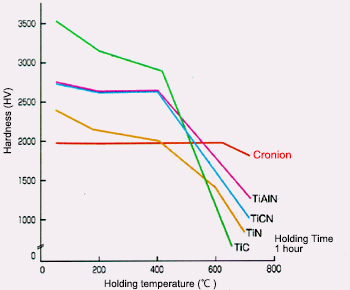

Heat resistance
●Change of coating hardness by tempreture
Nitrided + Coating Features
●Base material hardness is rised to the vicinity of coating hardness by nitriding. So.the stress reduction at the interface of the base material and coating.

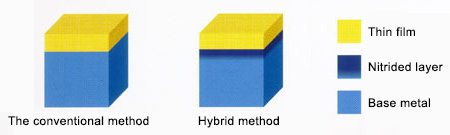

Coating sectional model
Continuous Nitrided + Coating process
●Adhesion is improved to migrate to the coating in a clean surface state. Cost reduction by the processing time is shortened.

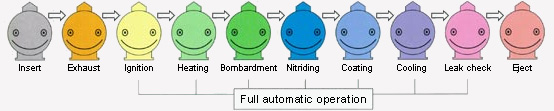

Hybrid(Nitrided + Coating) processing Step procedure
Cross section metallographic structure of nitriding sample

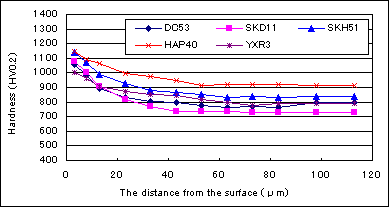

Cross sectional hardness distribution of Nitriding sample

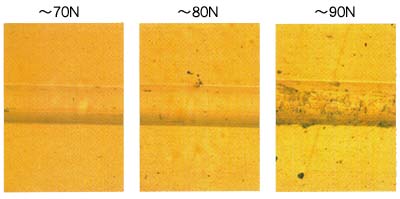

Comparison of scratch marks
●Scratch marks of Nitrided + TiN
●Scratch marks of TiN

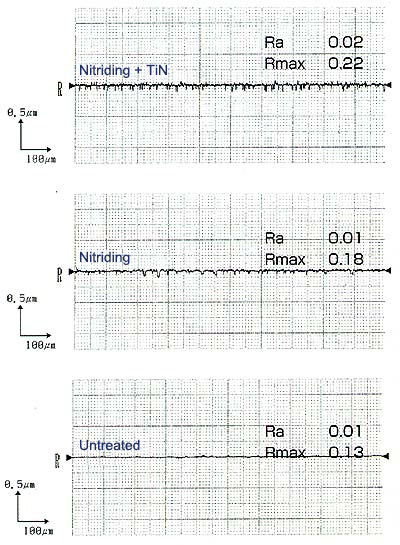

Change of surface roughness by hybrid coating
