Products
Cutting Tools
Carbide Drills
■AQUA Drill EX 3 Flutes Regular
●High-accuracy drilling
- Achieves high-accuracy drilling up to a depth of 5D with a 3-flute design that delivers excellent cutting balance
●Long tool life
- Features fine cemented carbide for excellent chipping resistance and AQUA EX coating for enhanced resistance to heat and wear
●Improves chip fragmentation and evacuation
- Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling
●Lineup
- 5D: Ø3-Ø16 *Cutting fluid is supplied externally
A 3-flute drill with an optimized flute geometry and cutting-edge design for an excellent cutting balance
●High-accuracy drilling
○ Features a 3-flute design that achieves excellent cutting balance. as well as high-accuracy drilling capable of a reamerless process up to a depth of 5D
●Handles drilling up to a depth of 5D
○ Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling
AQUA EX coating with enhanced resistance to heat and wear

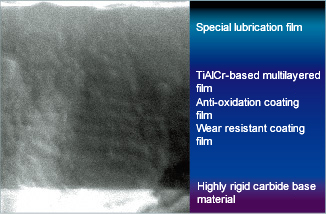

●AQUA EX coating
○ Features a special lubrication film and smoothing treatment for excellent chip evacuation ○ Ensures high oxidation resistance (1.100°C) by adding a layer with high Al content ○ Controls crack propagation with a multilayered structure. Optimizes compressive strength for increased film hardness (3.300HV). Increases resistance to wear.

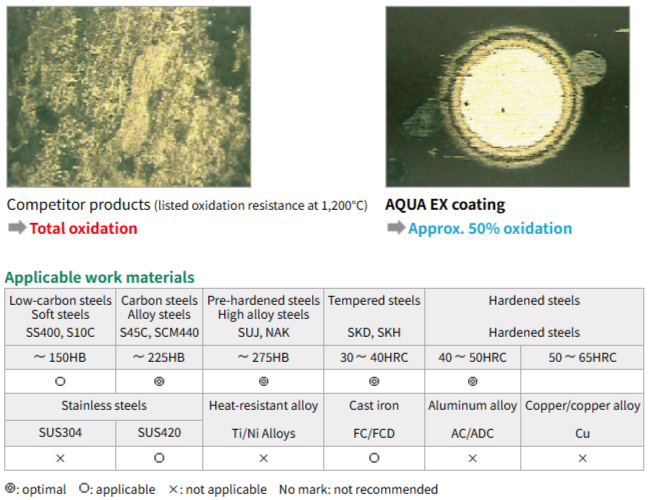

●Oxidation resistance evaluation
Handles drilling up to a depth of 5D
Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling
High-accuracy drilling of SCM440H (32HRC)
Achieves high-accuracy drilling up to a depth of 5D

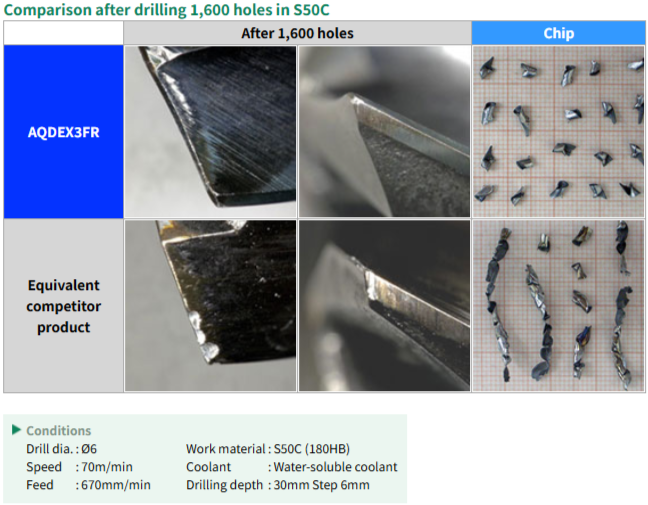

5D non-step drilling of S50C
>
