Cutting Tools
Carbide Drills
■AQUA Drill EX Oil-Hole 3 Flutes
●High-accuracy drilling
○ Features a 3-flute design that achieves excellent cutting balance. as well as high-accuracy drilling capable of a reamerless process
●High-speed. high-feed drilling
○ Optimized flute geometry and cutting-edge design dramatically improve chip fragmentation and evacuation. Enables high-speed. high-feed stable drilling
●Handles drilling up to a depth of 10D
○ Oil-hole adopted for efficient chip evacuation. Capable of drilling stainless steels
●Dimensions
○ 3D. 5D. and 10D available in Ø3.0-16.0

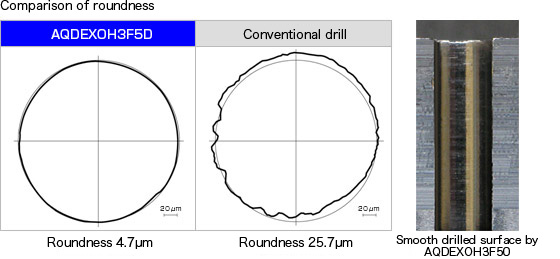

High-accuracy drilling capable of a reamerless process supports depth of up to 10D
Oil-hole adopted for efficient chip evacuation Capable of drilling stainless steels

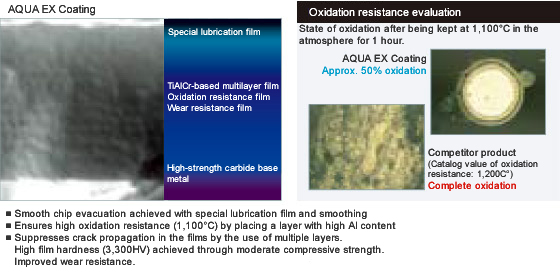

AQUA EX coating with enhanced resistance to heat and wear

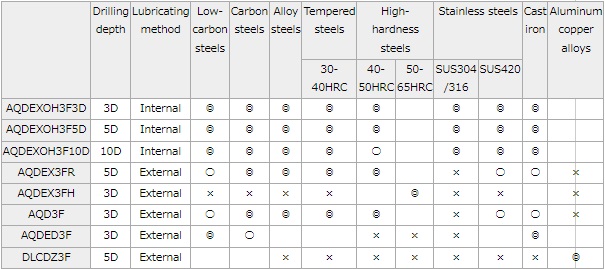

Series lineup and applicable work materials

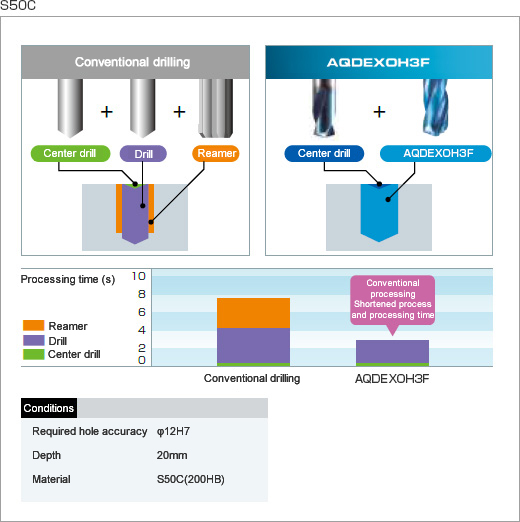

Shortened reamerless process

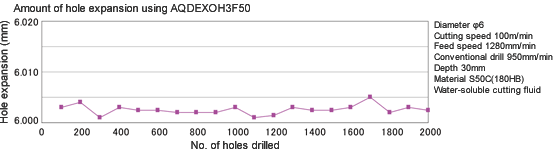

High efficiency and long tool life

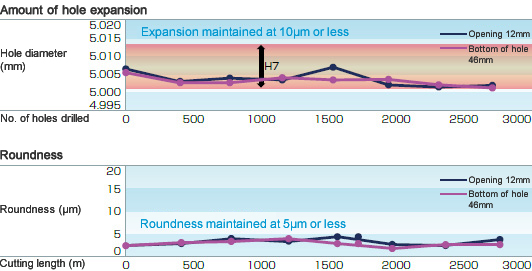

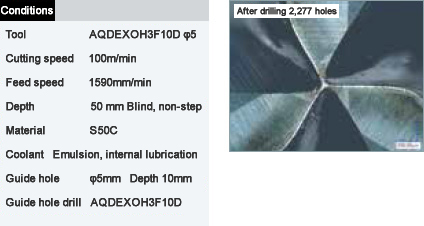

High-accuracy drilling of 10D deep holes
Introducing series products
>

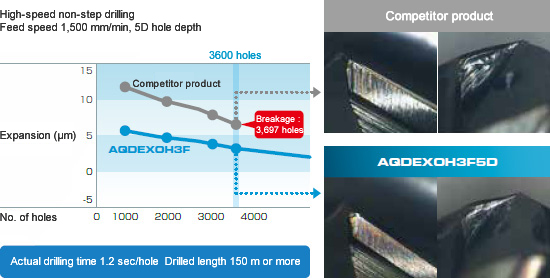

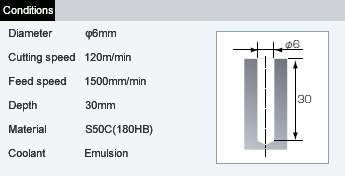

5D non-step drilling of SUS304
>
S50C 3D. 5D. 10D High-efficiency drilling at the hole exit(1)
●▶Introducing series products

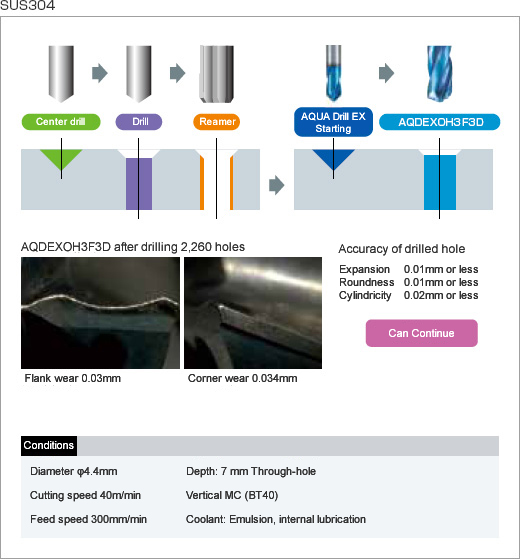

>Reamerless: Comparison with conventional drilling at the hole exit(2)
●▶5D non-step drilling of SUS304
>Comparison of drilling efficiency
●▶S50C 3D. 5D. 10D High-efficiency drilling
