Cutting Tools
Carbide Drills
■AQUA Drill EX FLAT Oil-Hole
●Add Oil Hole FLAT Drill for deep hole
○ Realize 5D drilling with high efficiency.

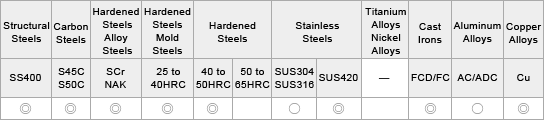

●Wide Application of material
○ Applicable from carbon steel. alloy steel and cast iron to stainless steel.
●Well balanced flute geometry realizing both rigidity and excellent evacuation
○ Improve chip separation and evacuation.
〇Inter-mediate double margin realizes highly accurate boring and controls oversize.
AQDEXZOH3D Ø3 to Ø16
AQDEXZOH5D Ø3 to Ø16
Hole enlargement is reduced and a wide range of work materials are supported
○ Applicable from carbon steel. alloy steel and cast iron to stainless steel.
○ Amount of oversize is reduced due to a double margin and the shape of the negative rake blade tip.

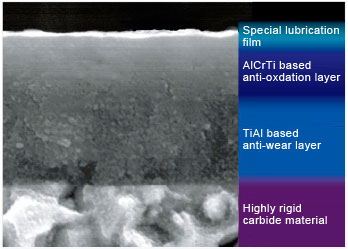

AQUA EX Coating
Improved resistance to oxidation. heat and wear

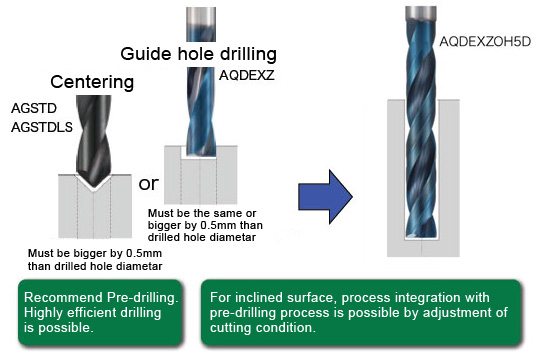

Deep hole drilling with AQUA FLAT Series

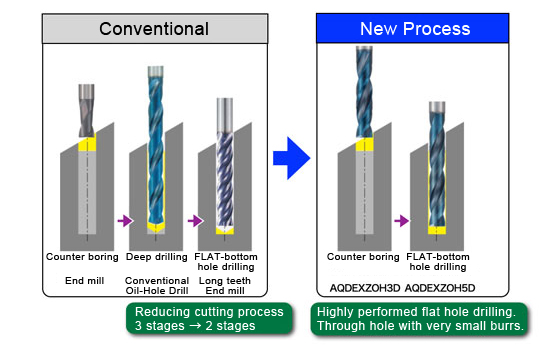

5D FLAT Oil Hole drilling on slope surface
Suitable for cross hole drilling in a deep work position
Excellent for burr control or chip disposal in internal cooling.

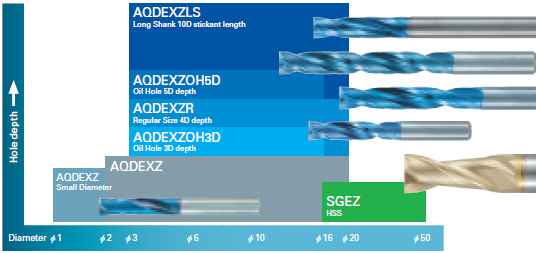

AQUA Drill EX Flat lineup

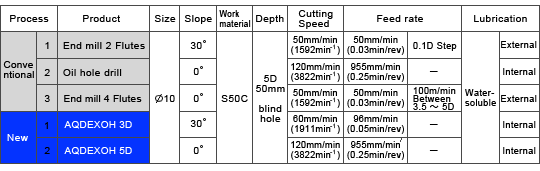

5D FLAT Oil Hole drilling on slope surface

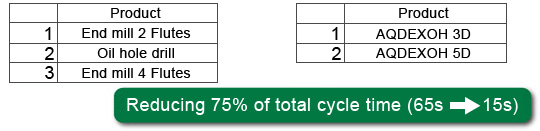

Sequential drilling (45°Slope → Flat surface)

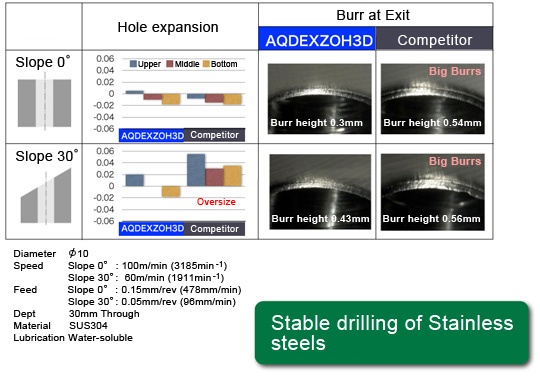

Through Hole Drilling of Stainless steels (SUS304)

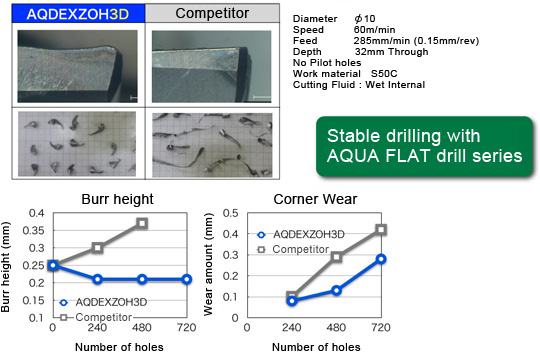

Wear comparison after 720 holes drilling

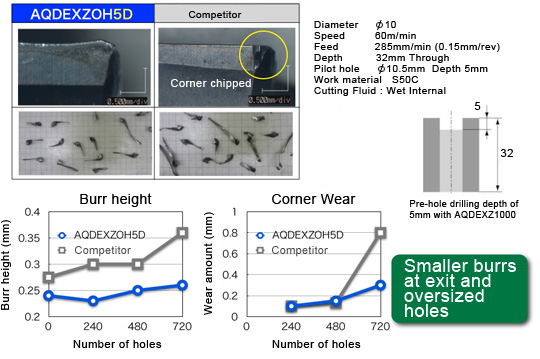

Wear and chip comparison after 720 holes drilling
SUS304 Non-step drilling
