○ Suitable for drilling small diameter holes less than 3mm. It is possible to operate stably due to aqua coating and new geometric. Tipping resistance.wear resistance of corner edge is increase
○ By Aqua Coating (PAT.P). which is wealthy in the lubrication with the work material and excellent to heat-resistance.

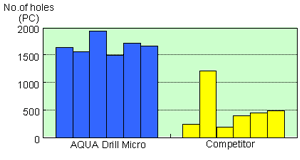

Drill : 1mm
Speed : 25m/min
Feed : 0.01mm/rev
Depth : 2mm Blind hole
non-step drilling
Material : C50(220HB)
S50C
Coolant : Emulsion
Conditions
Drill : 1mm
Speed : 80m/min(25500min-1)
Feed : 0.025mm/rev(625mm/min)
Non-step drilling
Depth : 3mm Blind
Material : S50C(220HB)
Coolant : DRY
Conditions
Drill : 1mm
Speed : 80m/min(25500min-1)
Feed : 0.025mm/rev(625mm/min)
Non-step drilling
Depth : 3mm Blind
Material : S50C(220HB)
Coolant : Emulsion
