商品情報
products
Products
Cutting Tools
Carbide Drills
■AQUA Drills FC
●Long tool life
○ The optimum combination of Carbide and AQUA coating provides wear and heat resistance in FC drilling. resulting in longer tool life compared with conventional FC drills.

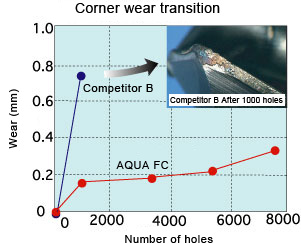

●Reduced corner wear
○ Special cutting edge design curbs corner wear. the most serious damage concern in FC drilling.
●No re-coating required when re-sharpening
○ Re-sharpening restores tool life to 70% of new drill without re-coating.

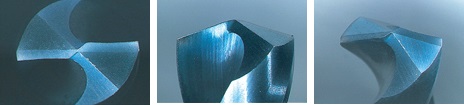

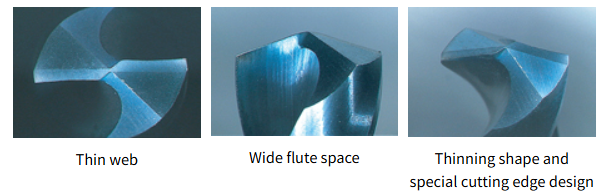

Drill shape
- Thin web and wide flute space ensure stable drilling.
- The thinning shape is restored easily in re-sharpening.
- Special cutting edge design protects damageable corner section.
Tool life comparison : FC250 Dry drilling
Tool life comparison : FCD450
●Drilling condition
Drill : 6.0mm
Speed : 100m/min
(5.300min-1)
Feed : 0.18mm/rev (960mm/min)
Depth : 25mm through hole
Material : FCD450
Coolant : Water soluble

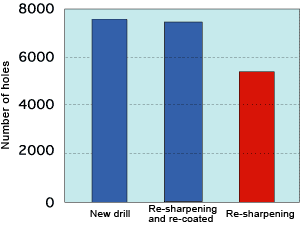

Performance of re-sharpened drill
●Drilling condition
Drill : 6.0mm
Speed : 100m/min
(5.300min-1)
Feed : 0.2mm/rev
(1.060mm/min)
Depth : 20mm through hole
Material : FC250
Coolant : Air blow
AQUA Drills FCm Dry drilling
Drill : 6.0mm
Speed : 100m/min
(5.800min-1)
Feed : 0.13mm/rev
(760mm/min)
Depth : 20mm through hole
Material : FC250
Coolant : Air blow
カタログダウンロード
Catalog Download
