Cutting Tools
Carbide Drills
■DLC Drills
●Dry drilling of Aluminum
○ DLC (Diamond Like Carbon) is an amorphous material with high hardness and low friction rate. and has similar character of Diamond. Application for drilling & milling in Aluminum Ultra high speed cutting in DRY !
●Excellent chip evacuation
○ Trouble free drilling by unique flute geometry Stable & extra long tool life is realized by DLC film & its unique flute.

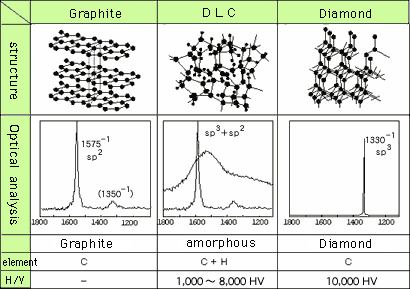

Construction of DLC

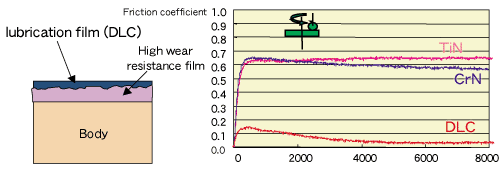

Thanks for newly developed DLC film having no built-up edge

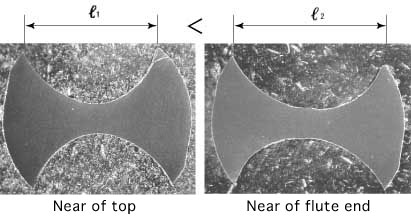

Adoption the flute which spread gradually (Pat.P)

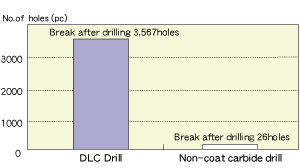

Performance of Dry Drilling
●Conditions
Drill : 5.5mm
Speed : 100m/min
Feed : 0.08mm/rev
Depth : 16.5mm Blind
Material : ADC12
Coolant : DRY

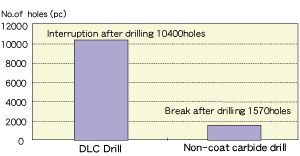

Performance of Wet Drilling
●Conditions
Drill : 5.5mm
Speed : 100m/min
Feed : 0.08mm/rev
Depth : 27.5mm Blind
Material : AlMg2.5
A5052
Coolant : Emulsion
Dry drilling by DLC Drill
Drill : 5.5mm
Speed : 100m/min
(5.800min-1)
Feed : 0.08mm/rev
Depth : 16.5mm Blind
Material : ADC12
Coolant : DRY
Dry drilling by DLC Drill
Drill : 3.6mm
Speed : 100m/min
Feed : 0.08mm/rev
Depth : 18mm Blind
Material : ALZnMgCu1.5
A7075
Coolant : DRY
