Products
Cutting Tools
Carbide Drills
■Diamond Coated Drill
●Diamond coating
○ Powder HSS with SG Coating and the tool life is 2-3 times of conventional drills.
●Long tool life
○ The tool life is 10 times of conventional carbide drill in drilling high silicon aluminum
●Precision
○ It is possible to acquire excellent surface roughness
●Precision
○ It is possible to acquire excellent surface roughness
●Series
○ Diamond Coated Drill
○ Diamond Coated FF Drill

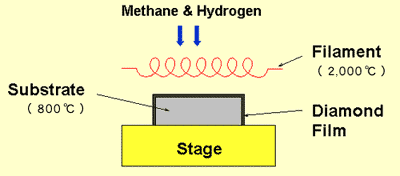

Mechanism of Diamond Coating

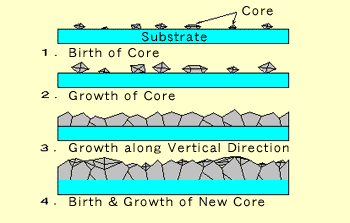

Growth Process of Diamond Film
Growth process of Diamond film is called as Volmer-Weber type and generally increase its thickness by birth and growth of core repeatedly.
●100% pure diamond coating
Applicable on unique cutting edge
Applicable on Micro tool
Cross section photo of diamond film

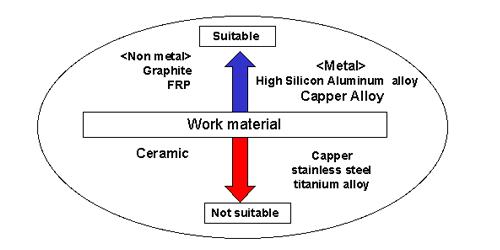

Work materials of Diamond Coated tools

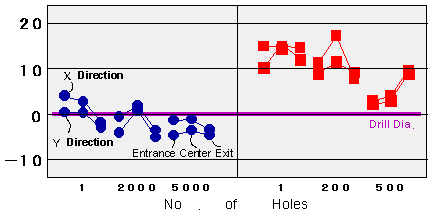

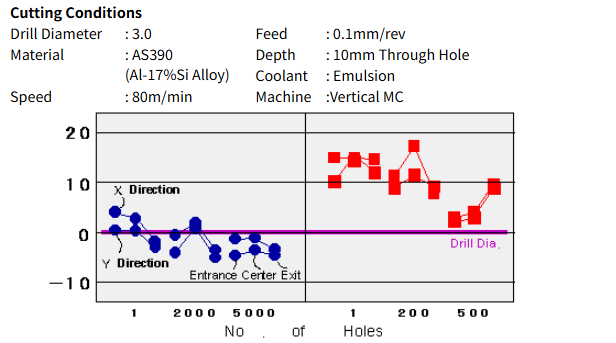

Comparison of Drilling accuracy
Cutting Conditions
Drill Diameter : 3.0Feed : 0.1mm/rev
Material : AS390
Depth: 10mm Through Hole
(Al-17%Si Alloy)
Coolant : Emulsion
Speed: 80m/min
Machine : Vertical MC
Performance of drilling High silicone
Conditions
Drill : 6mm
Speed : 800m/min
Feed : 0.20mm/rev
Depth : 20mm Through
Material : AS390
Coolant : Emulsion

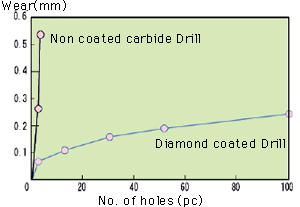

Performance of drilling MMC
Conditions
Drill : 6mm
Speed : 20m/min
Feed : 0.03mm/rev
Depth : 24mm Through
Material : MMC
Coolant : Emulsion

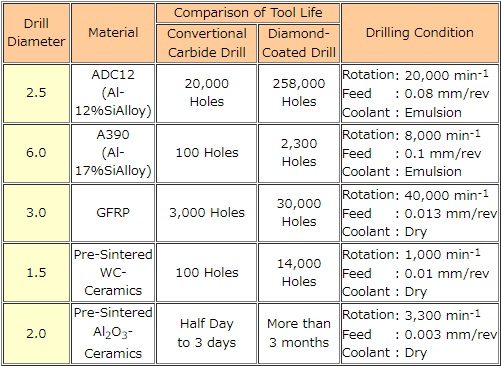

Examples
