Products
Cutting Tools
HSS Drills
■SG-ESR/ESS Drills
●Longest service life for high-speed steel (HSS) drills
○ Powder HSS with SG Coating and the tool life is 2-3 times of conventional drills.
●Stable and high precision drilling
○ Extremely precise positioning and Stable drilled hole diameter.
●Stable drilling is realized for a wide range of work materials
○ The SG-ESR drill realizes stable machining for a wide range of work materials with improved chip breaking and chip removal. ○ The SG-ESS drill newly supports even smaller diameters (Ø0.5 to Ø1) that expands applications.

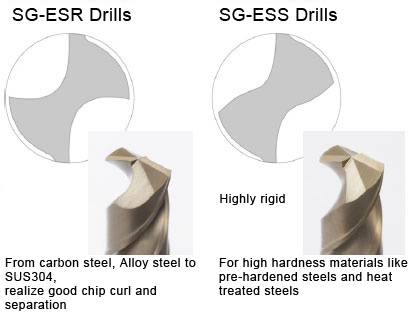

Flute Geometry of SG-ESR

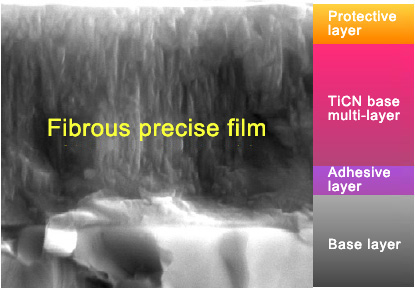

SG Coating
○ Specialized Film for Drill with Fine Structure ○ Fine and multiple layer structure improve rigidity and wear-resistance
Fibrous precise films can control fatigue crack propagation and prevent the big damage to coating film

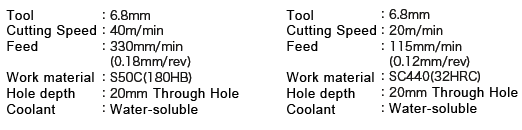

Drilling of S50C SCM440 SGESR (Movie)

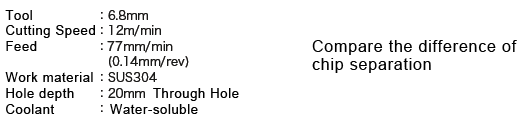

Drilling of Stainless steels (SUS304) SGESR (Movie)

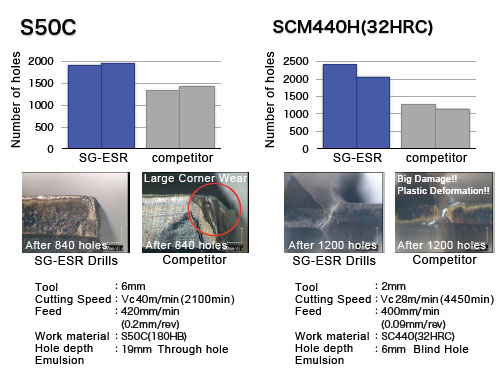

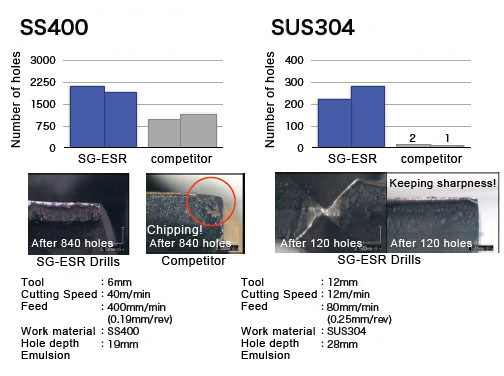

Tool life (SS400 SUS304)

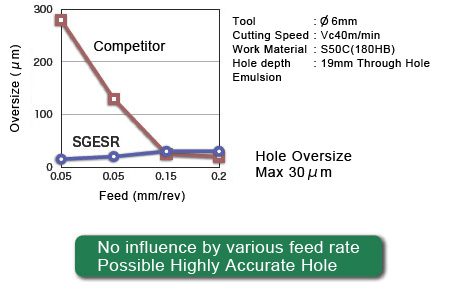

Oversize - Comparison in each feed rate

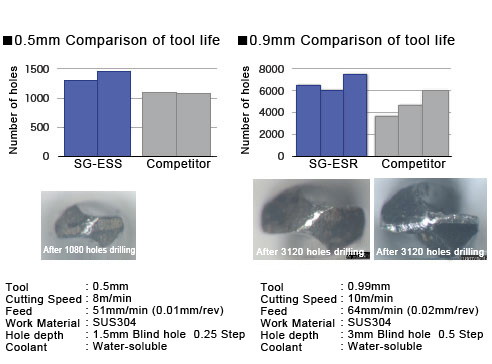

Appication example : Tool life comparison SGESS
Introduction
>
S50C/SCM440H/ADC12/SUS304
>
カタログダウンロード
Catalog Download
