■Hyper Z TAP for Taper pipe threads

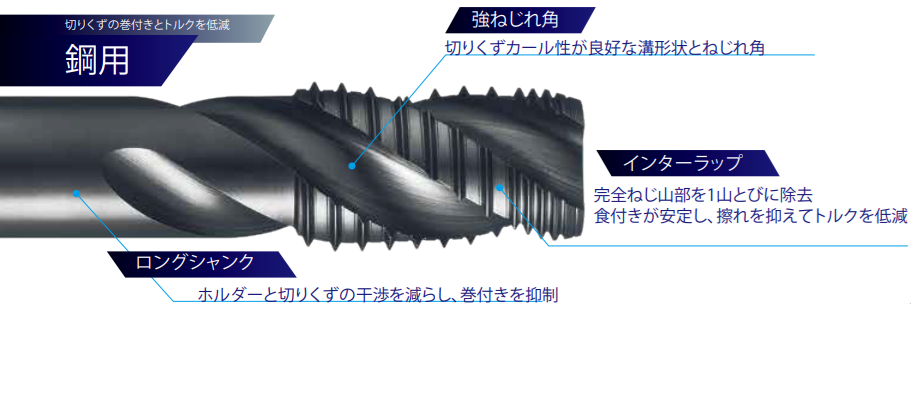

●Hyper Z TAP for Taper pipe threads for steel
- Uniform chip curl suppresses chip winding.
- Reduction of torque even for steel-based work materials where cutting resistance increases.
- Chips are hard to get caught long life by suppressing blade chipping.

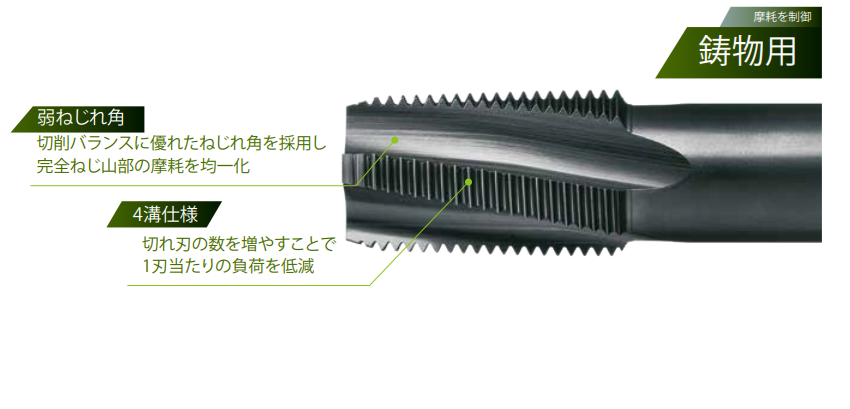

●Hyper Z TAP for Taper pipe threads dor Cast Iron
- Tool runout was suppressed by the optimization of the twist angle Long tool life with uniform distribution of wear on cutting edges.
Chip winding and torque suppressed
Control wear
For Steel / Cutting of Structural Steel (SS400)

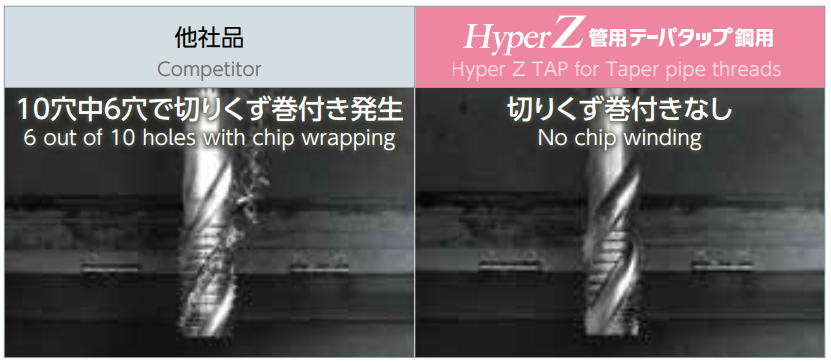

Suppresses winding of chips

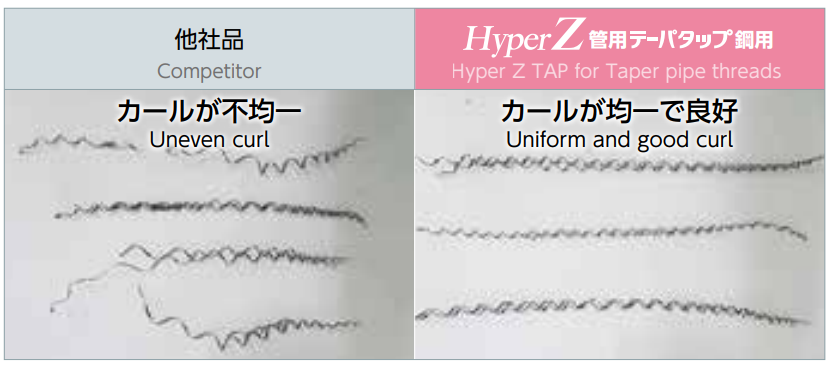

Uniform chip curl suppresses chip winding
If chips wrap around Chip removal causes a short stop Cutting edges chipping or breakage due to chip biting

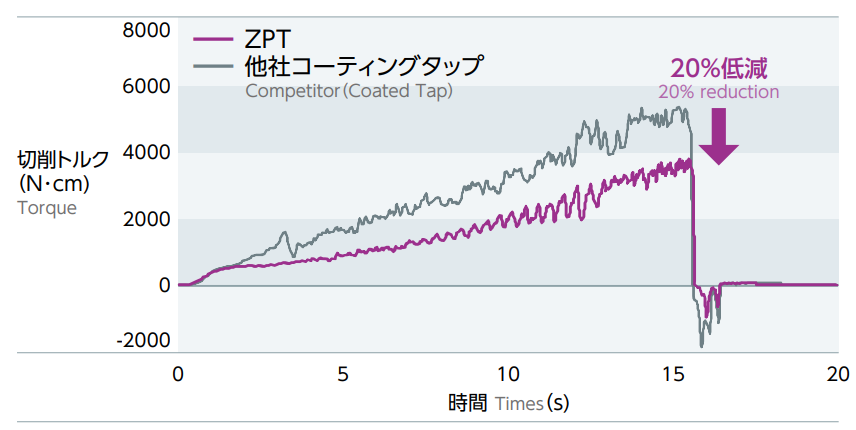

●Low torque
Reduction of torque even for steel-based work materials where cutting resistance increases

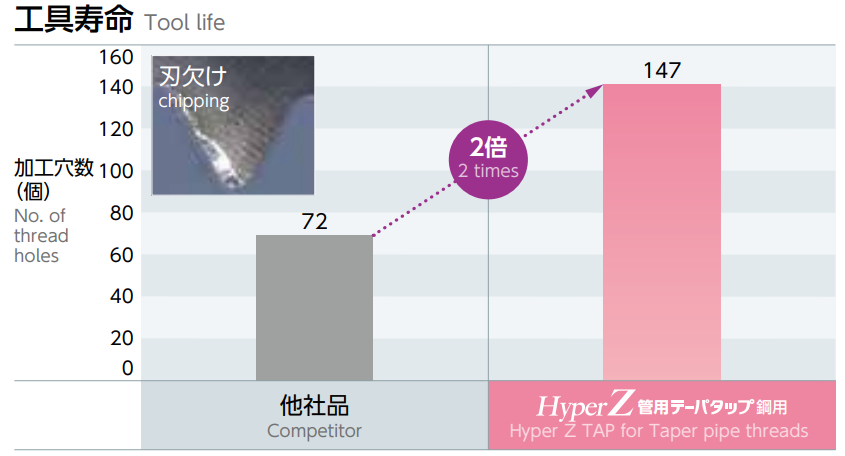

●Long tool life
Chips are hard to get caught. long life by suppressing blade chipping
for Cast Iron / Cutting of Cast Iron (FC250)

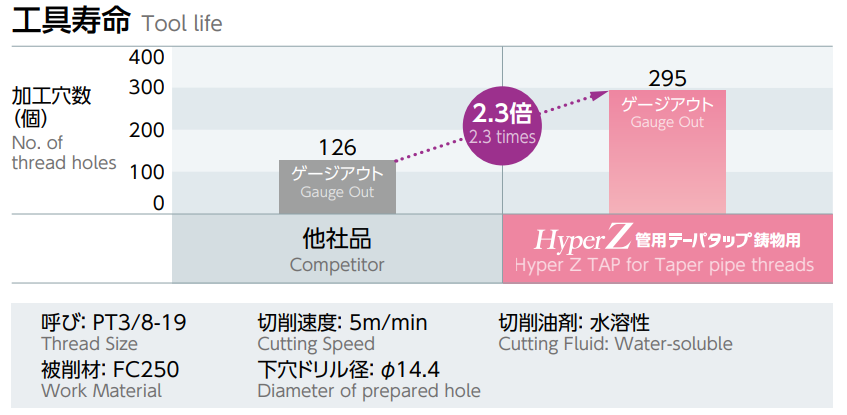

Long tool life
Tool runout was suppressed by the optimization of the twist angle Long tool life with uniform distribution of wear on cutting edges

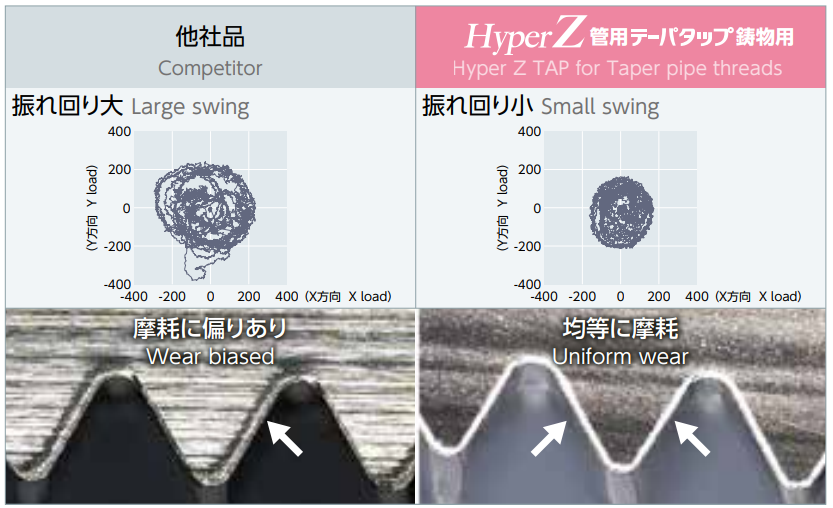

Tool runout load and wear state (after 100 holes)
