Cutting Tools
Cut thread taps
■SG Spiral Taps Burrless / SG Spiral Taps Burrless Left Hand Helix
●Burrless series
Zero burrs at the internal diameter of internal thread
- Overturning the conventional wisdom that “it is natural for burrs to appear during cutting” and “it is natural to remove burrs after machining” we took on the challenge of minimizing burrs.
- It is now possible to eliminate the secondary processing of deburring, which was previously required, resulting in shorter processing times and significant cost reductions.
Zero burr with cutting the internal diameter area on internal thread

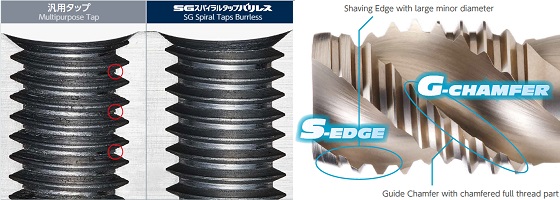

S-edge (Shaving edge)

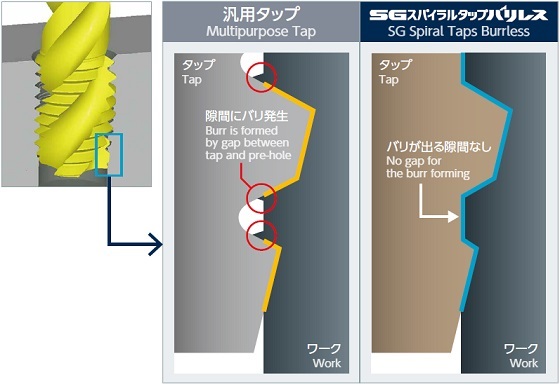

○ No gap between thread root area of tap and pre-hole design acheves Zero burr!
G-chamfer (Guide chamfer)
○ Chamfered rake face reduce the chipping of cutting edge by chip biting

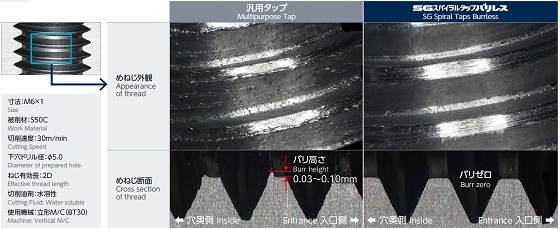

Burr height of internal thread
○ Realized Burr zero on internal diameter of internal thread

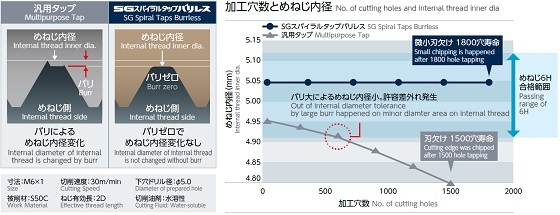

Long tool life as same as multipurpose Taps
○ Stable internal diameter accuracy lead Burr zero performance. even near to the end
of tool life
○ Reduces chipping and achieves same tool life equivalent to multipurpose taps
Products Information
カタログダウンロード
Catalog Download
