Cutting Tools
Carbide End Mills
■GSX MILL VL Roughing
●Vibration suppression
〇Features unequal spacing of teeth and variable leads to effectively suppress vibration even in heavy-cutting、 pre-finish machining that exerts considerable stress on the tool、 and minimizes chipping and wear
●Long tool life
〇Features chipping-resistant carbide materials and GSX II coating for a longer tool life
●Supports a wide range of machining
〇Demonstrates outstanding cutting performance in any application from grooving to pocket machining
●Lineup
〇Ø4-Ø20 (13 sizes)
Features a design optimized for unequal spacing of teeth and variable leads to improve chipping resistance and enable high-efficiency machining
●Nick shape
○ Suitable for unequal spacing of teeth and variable leads Excellent chipping resistance
●Flute geometry
○ Stiffness to withstand heavy cutting Chip evacuation performance that enables pocket machining

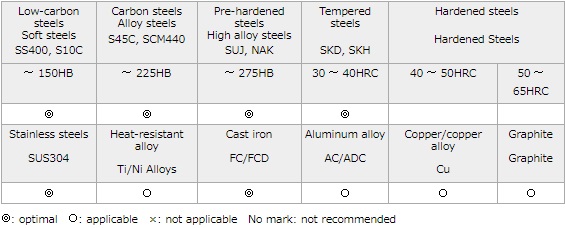

●Applicable work materials
GSX II coating
- Achieves excellent heat resistance with enhanced oxidation resistance and heat dissipation

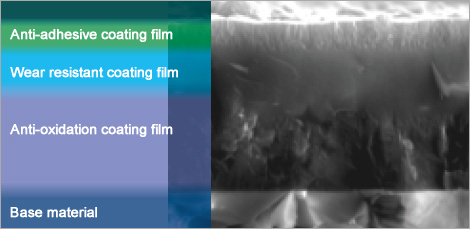

- Features a new layered structure for high hardness
- Optimizes the crystal structure of the film for increased resistance to wear and adhesion
●Heat resistance far superior to competitors

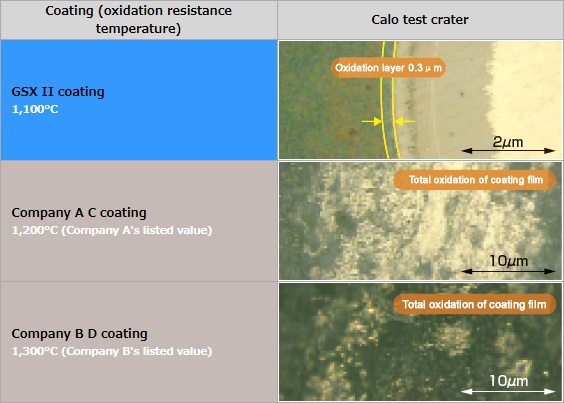

Oxidation resistance evaluation (calo test crater after being held for 1 hour in the atmosphere at 1.100°C)
Oxidation resistance tests conducted under NACHI standards showed GSX II coating limits oxidation to 0.3µm from the surface. whereas coating products of competitors resulted in total oxidation of the coating layer.
Improves chipping resistance for a longer tool life

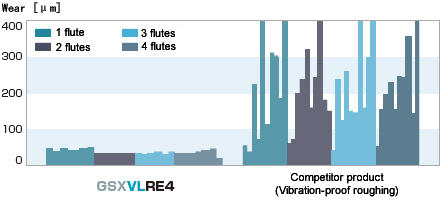

Comparison of wear after grooving 10m with S50C

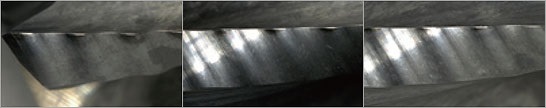

●GSXVLRE4
➡ GSXVLRE4 is capable of continuous machining with no chipping

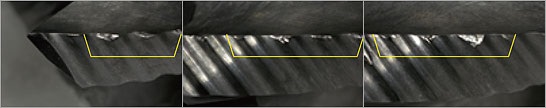

●Competitor products
➡ Chipping occurs frequently

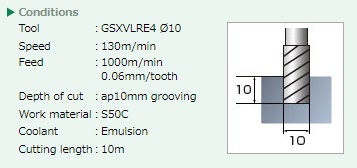

Grooving of S50C
