■GSX MILL VL Hard
●Vibration suppression
〇Controls chattering vibration with unequal spacing of teeth and variable leads
●Excellent durability
〇Improves chip evacuation and stiffness with flute geometry optimized for high-hardness materials
●Long tool life
〇Features heat-resistant carbide materials and GSX II coating for a longer tool life
●Work material
〇Suitable for finishing hardened steels difficult to machine with general-purpose end mills
●Lineup
〇Ø6-Ø20 (6 sizes)

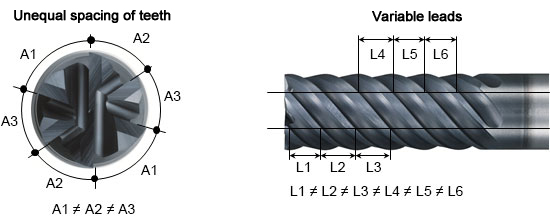

Unequal spacing of teeth and variable leads
Features unequal spacing of teeth and variable leads that control chattering vibration and flute geometry optimized for high-hardness materials with enhanced chip evacuation and stiffness

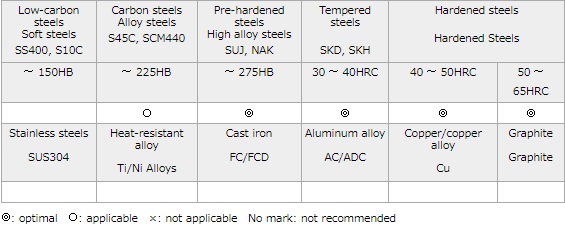

●Applicable work materials
GSX II coating
- Achieves excellent heat resistance with enhanced oxidation resistance and heat dissipation
- Features a new layered structure for high hardness
- Optimizes the crystal structure of the film for increased resistance to wear and adhesion
●Heat resistance far superior to competitors

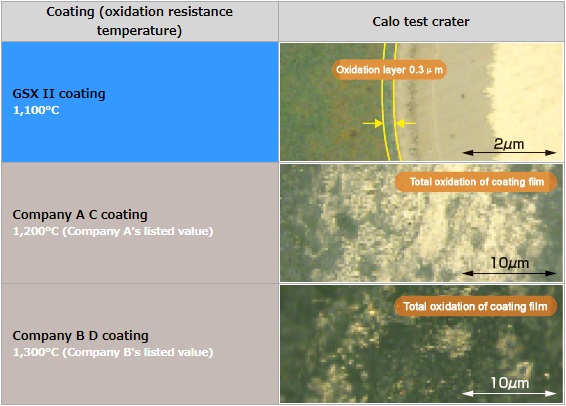

Oxidation resistance evaluation (calo test crater after being held for 1 hour in the atmosphere at 1.100°C)
Oxidation resistance tests conducted under NACHI standards showed GSX II coating limits oxidation to 0.3µm from the surface. whereas coating products of competitors resulted in total oxidation of the coating layer.
Enhanced durability and stable machining

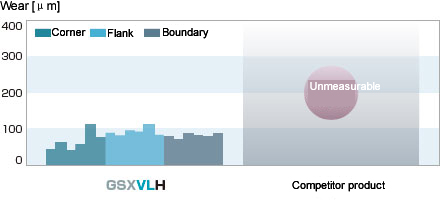

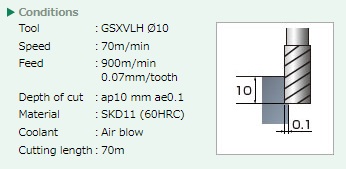

Comparison of wear after side milling 70m with SKD11 (60HRC)
●Competitor products
➡ Chipping occurs frequently
●GSXVLH
➡ GSXVLH shows normal wear and can be used continually
Side milling of SKD61 (53HRC)
