Cutting Tools
Carbide End Mills
■GSX MILL VL Long Shank
●Vertical wall milling up to 5D height
〇Well-balanced sharpness and rigidity realize high efficient and high precision milling for vertical walls.
●Endmill with unequal tooth spacing and variable leads
〇Periodicity of cutting stress is effectively suppressed by continuously changing outer teeth spacing、 allowing for chattering control.
●For titanium alloy and SUS and for steels
〇There are two types、 for steels and for titanium alloy and SUS that support almost any work materials.
●GSX II coating
〇With the multi-layer of heat resistance coating and hard coating、 GSX MILL VL supports cutting of hardened materials. With high wear resistance and anti-adhesion properties、 stable chip removal is realized for a wide range of work materials.
●Additional release of the radius model
〇The radius model was added to the steel type and the titanium alloy and SUS type.

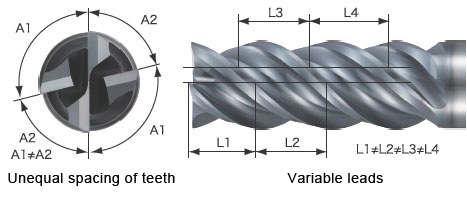

Unequal spacing of teeth · Variable leads
Reduce vibration and realize high quality milling by adapting unequal index and lead design.
GSX MILL VL Anti-Vibration Effect (Movie)

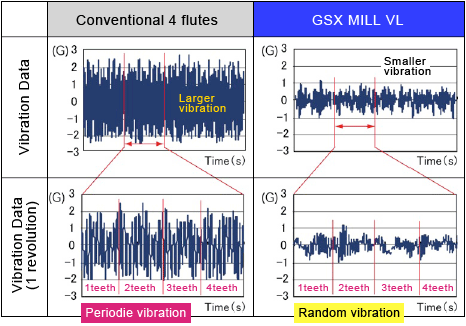

Comparison of vibration

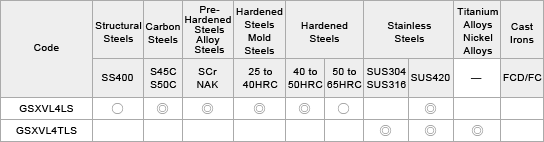

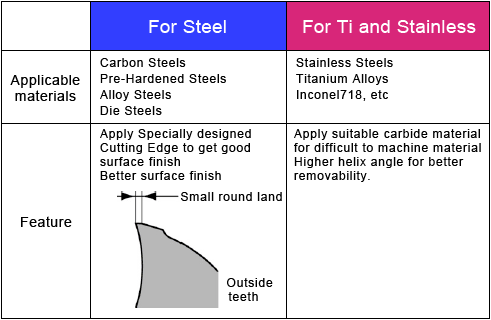

Applicable to wide range of materials by two series
GSX-II Coating
●Excellent heat resistance
- ○ Achieve high heat Resistance with Al-rich composition.
●Multi layer structure
- ○ High hardness of coating in according to multi layer structure with AlCr and AlCrX.
●Crystal structure
- ○ Great wear and resistance with optimum crystal structure.

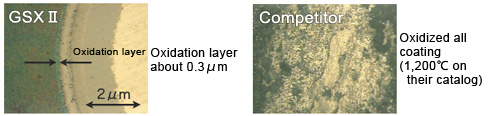

●Evaluation of oxidation resistance
- Status of coating films after keeping with 1.100°C in the air after 1 hour.

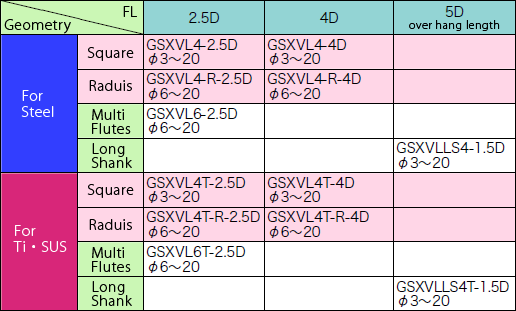

GSX MILL VL Series

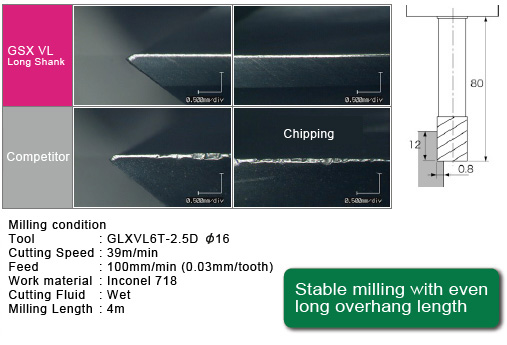

Comparison of wear in Ni base Alloy
Titanium Alloy Deep side milling (Movie)

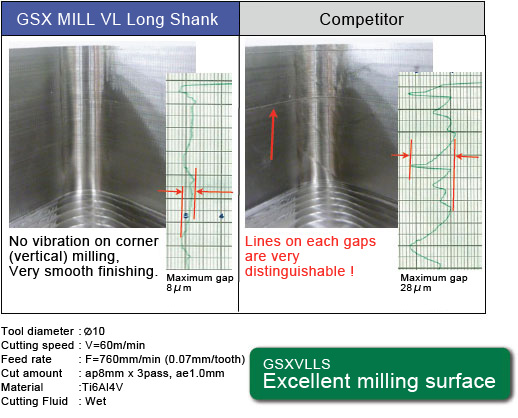

Titanium Alloy Deep side milling

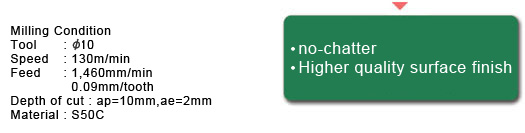

High efficient milling at carbon steels (S50C)

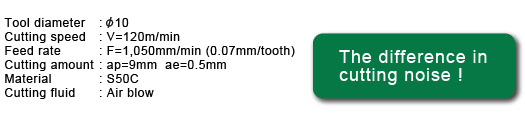

S50C Deep Side Milling (Movie)

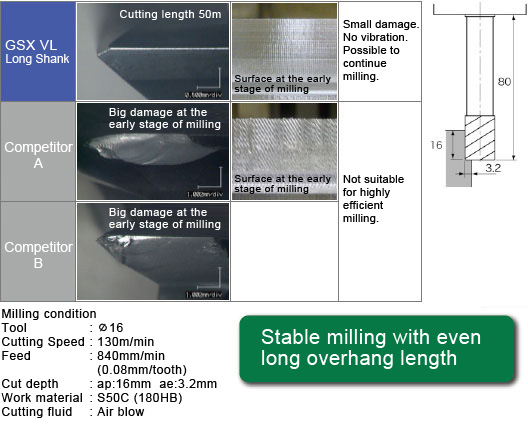

S50C Deep side milling roughing

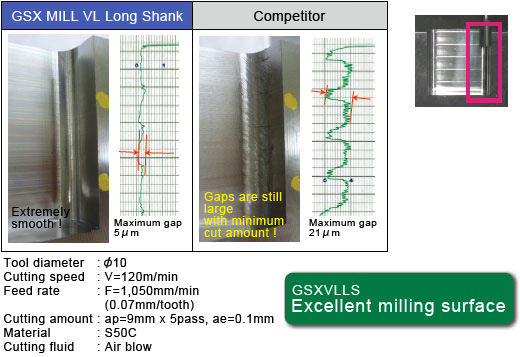

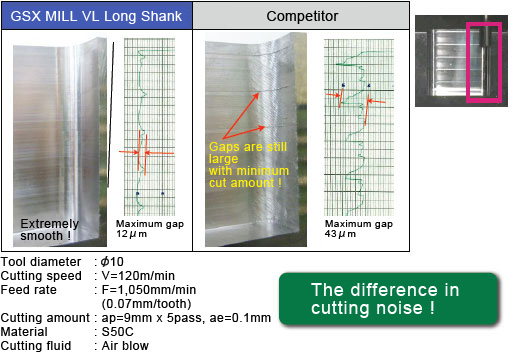

S50C Deep side milling finishing
Deep side milling
