Cutting Tools
Carbide End Mills
■GSX MILL VL Multi-Flutes
●High-precision finish work
〇High efficient and high precision finish work is possible with six highly rigid blades.
●Unequal spacing of teeth · Variable leads
〇Periodicity of cutting stress is effectively suppressed by continuously changing outer teeth spacing. allowing for chattering control.

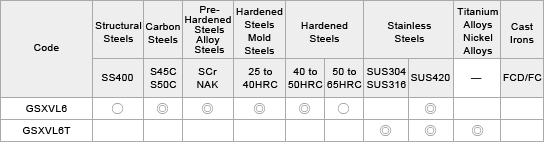

●For titanium alloy and SUS and for steels
〇There are two types. for steels and for titanium alloy and SUS that support almost any work materials.
●GSX II coating
〇With the multi-layer of heat resistance coating and hard coating. GSX MILL VL supports cutting of hardened materials. With high wear resistance and anti-adhesion properties. stable chip removal is realized for a wide range of work materials.
●Additional release of the radius model
〇There are two types. for steels and for titanium alloy and SUS that support almost any work materials.

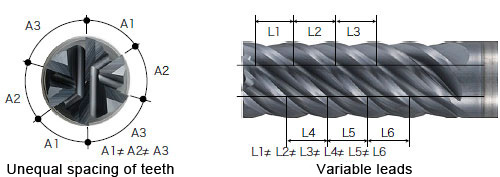

Unequal spacing of teeth · Variable leads
Reduce vibration and realize high quality milling by adapting unequal index and lead design.

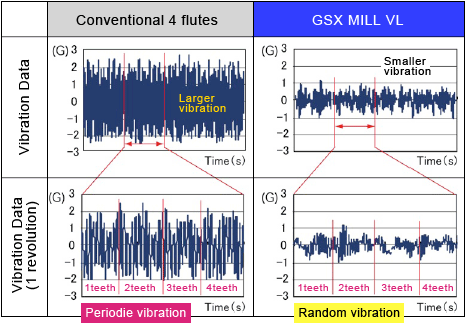

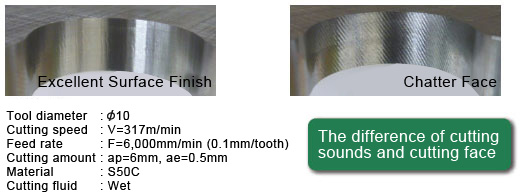

Comparison of vibration

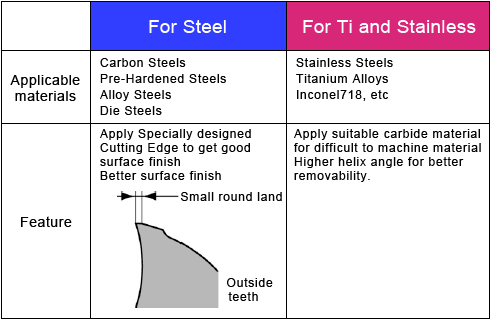

Applicable to wide range of materials by two series
GSX-II Coating
●Excellent heat resistance
- Achieve high heat Resistance with Al-rich composition.
●Multi layer structure
- High hardness of coating in according to multi layer structure with AlCr and AlCrX.
●Crystal structure
- Great wear and resistance with optimum crystal structure.

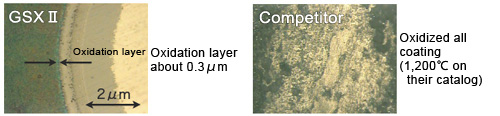

Evaluation of oxidation resistance
Status of coating films after keeping with 1,100°C in the air after 1 hour.

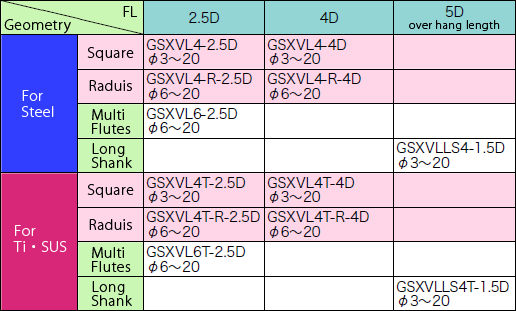

GSX MILL VL series
Wave Milling on thin plate

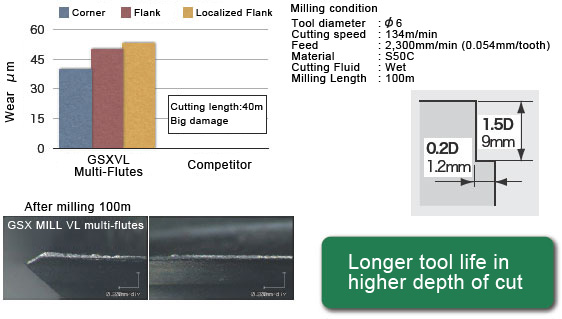

Wear comparison : After milling S50C 100m

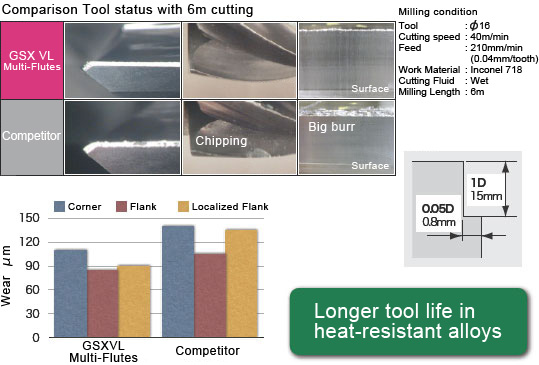

Comparison Tool status with 6m cutting
Pocket Milling for Ti Alloy with GSXVL Multi-Flutes

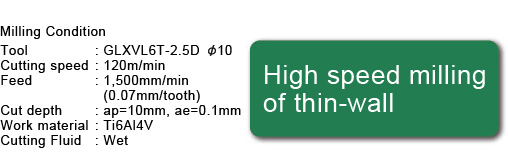

High speed milling
