Cutting Tools
Carbide End Mills
■GSX MILL Ball
●A wide range of work materials from raw materials to hardened materials are supported
〇Smooth streamlined ball nose-shaped edge improves chip removal.
●Improved milling surface quality
〇Excellent sharpness suppresses chattering. allowing for highly precise milled surfaces.
●GSX II coating
〇GSX II coating with superior heat. wear and adhesion resistance to achieve long tool life.

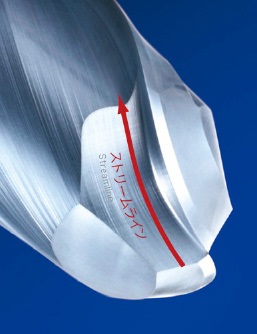

Streamlined shape
Smooth streamlined ball nose-shaped edge
- reduces cutting resistance
- improves chip removal

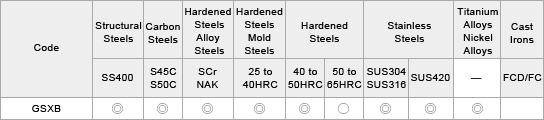

Suitable wide range of work materials. from general-purpose to ultra high speed milling.
GSX-II Coating
●Excellent heat resistance
○ Achieve high heat Resistance with Al-rich composition.
●Multi layer structure
○ High hardness of coating in according to multi layer structure with AlCr and AlCrX.
●Crystal structure
○ Great wear and resistance with optimum crystal structure.

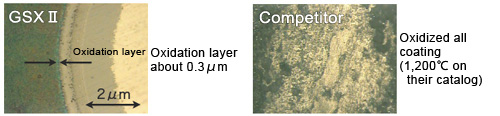

●Evaluation of oxidation resistance
Status of coating films after keeping with 1.100°C in the air after 1 hour.

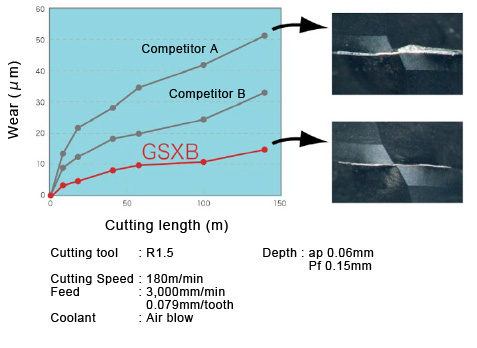

Wear comparison with SKD11 (raw material)

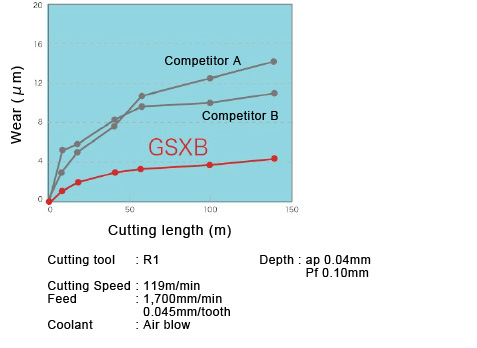

Wear comparison with SKD61 (53HRC)
Introduction
