Products
Cutting Tools
HSS End Mills
■AG-mill Roughing
● High-efficiency machining
- Perfect balance of wear resistance, toughness, and chipping resistance, high-efficiency machining, and a long tool life are achieved with the newly developed high-alloy HSS. TiAIN-based AG coating made with a new process. and optimum end mill design
●Stable machining tool life
- Adopts a fine pitch nick to minimize cutting resistance
- Delivers stable performance in heavy-cutting, pre-finish grooving and side milling
Achieves wear resistance. toughness. and chipping resistance
●Conditions
End mill : 20 mm
Speed: 40 m/min
(640 min-1)
Feed : 0.1 mm/t (260 mm/min)
Material : S50C (180HB)
Cutting length : 3.6 m
Coolant : Emulsion
No re-coating required after re-grinding
Comparison of initial and re-grinding performance
End mill : 10 mm
Speed: 22 m/min
(710 min-1)
Feed : 0.037 mm/t (106 mm/min)
Material : SKD11 (210HB)
Cutting length : 3 m
Coolant : Air blow
Grooving of S50C (180HB)
Comparison of cutting length up to baseline tool life
Conditions
End mill : 20 mm
Speed: 40 m/min
(640 min-1)
Feed : 0.1 mm/t (260 mm/min)
Material : S50C (180HB)
Cutting length : 3.6 m
Coolant : Emulsion
Side milling of SKD 11 (210HB)

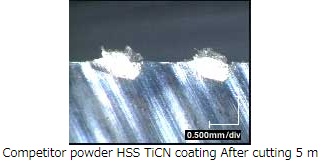

●Comparison of wear of cutting edge
Wear in side milling
Conditions
End mill : 20 mm
Speed : 22 m/min
(355 min-1)
Feed : 0.093 mm/t (132 mm/min)
Material : SKD11 (210HB)
Cutting length : 5 m
Coolant : Air blow
Grooving of SKD materials (210HB)
●agmr (129KB)
●Conditions
End mill : 20 mm Speed : 25 m/min (400 min-1) Feed : 110 mm/min (0.15 mm/rev) Material : SKD11 (210HB) Coolant : Air blow
