Hydraulic Equipment
Valve
■SAW Series Solenoid Valve with Monitoring Switch (SAW-G01)
SAW-G01 External appearance
- It is a solenoid valve that monitors the direction switch position of the valve and possesses the function of outputting a signal.
- It operates the switch directly with the valve operation so reliable output can be obtained.
- It does not use magnetic sensors or proximity sensors so the temperature drift and hysteresis are smaller than before.

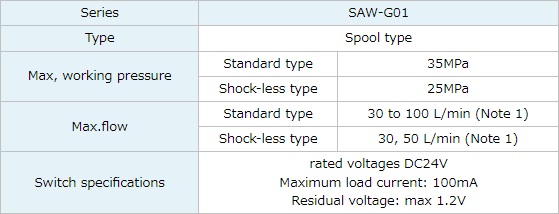

(Note1) The maximum flow differs depending on the valve format and working pressure.

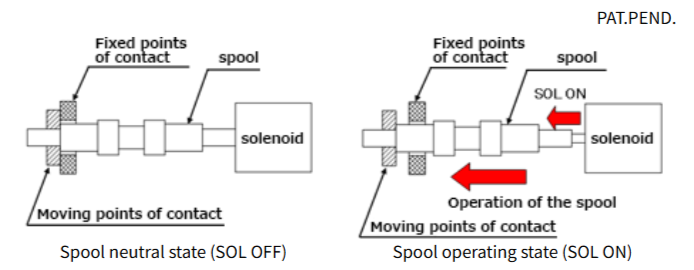

Working principle
When the spool is in a neutral state. the fixed points of contact and the moving points of contact touch and are in a state of electrical conductance. When the spool begins to operate. the moving points of contact move to the left side in tandem with it. and the fixed points of contact and moving points of contact enter a state of electrical non-conductance.
Pressure - permissible flow value

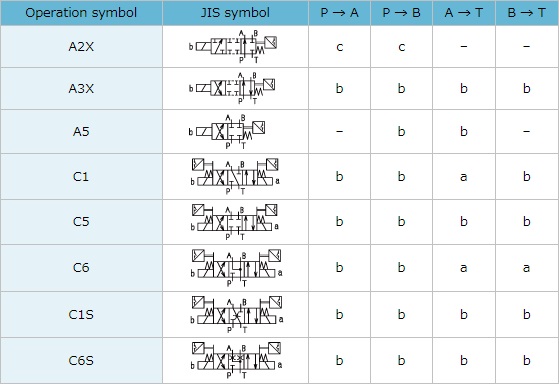

Valve pressure loss
- You can use this valve when designing and manufacturing mechanical equipment that complies with the standard for safety of machinery (ISO 12100) and the JIS standard (JIS B 9700).

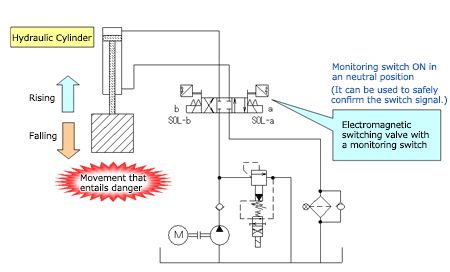

Example of the use of an electromagnetic switching valve with a monitoring switch
mounting dimensions
The installation dimensions of the gasket surface are ISO 4401-03-02.
カタログダウンロード
Catalog Download
