■SCW Series Solenoid Valve with Monitoring Switch (SCW-G03)
SCW-G03 External appearance
- It is a solenoid valve that monitors the direction switch position of the valve and possesses the function of outputting a signal.
- It operates the switch directly with the valve operation so reliable output can be obtained.
- It does not use magnetic sensors or proximity sensors so the temperature drift and hysteresis are smaller than before.

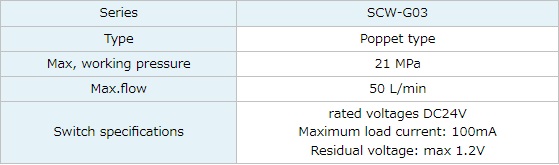

Primary specification

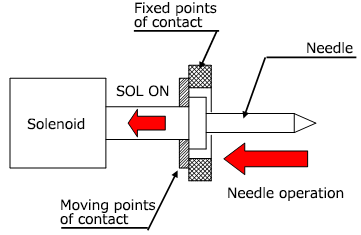

Working principle
When the needle valve is in a neutral state. the fixed points of contact and the moving points of contact touch and are in a state of electrical conductance. When the solenoid coil is turned ON and the needle valve begins to operate. the fixed points of contact and the moving points of contact enter a state of electrical non-conductance.

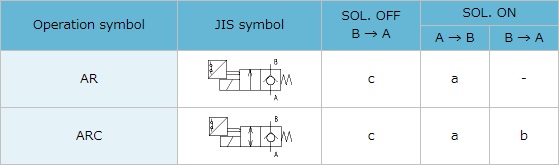

Valve pressure loss
You can use this valve when designing and manufacturing mechanical equipment that complies with the standard for safety of machinery (ISO 12100) and the JIS standard (JIS B 9700).

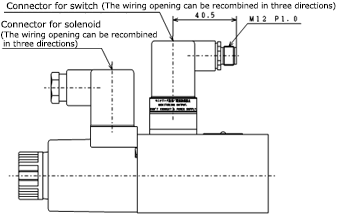

mounting dimensions
The installation dimensions of the gasket surface are ISO 4401-03-02. However. only use the A and B ports.
