工作機械
スカイビング ギヤシェープセンタ
■スカイビング ギヤシェープセンタ GMS100
●電機・電子やEV、減速機、航空機、医療関連分野の小型部品をターゲットとした複合加工機
- スカイビング、ホブ、旋削、穴あけなど歯車加工工程を1台に集約
- 外径～Ø100mm、全長～300mmまでの小型ワークに最適
- 最適な軸構成と特殊加工ツール、プログラムにて旋削機能を強化
- 旋削、穴あけ、歯切り加工機のライン構成と比較し、設置面積54%減
- 高剛性本体と多軸同時制御により、自由曲面の高精度加工が可能

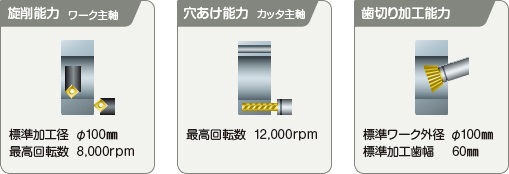

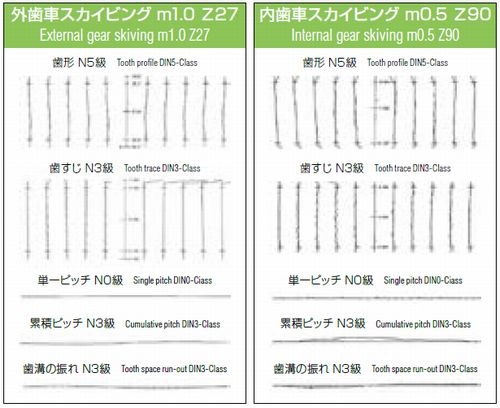

加工能力

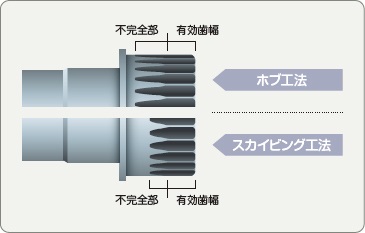

スカイビングとホブの比較
●ホブ工法では大きな不完全ギヤ部が出来ますが、スカイビング工法では不完全ギヤ部を縮小することが 出来るため、製品の偏平化、小型化、軽量化に貢献します。

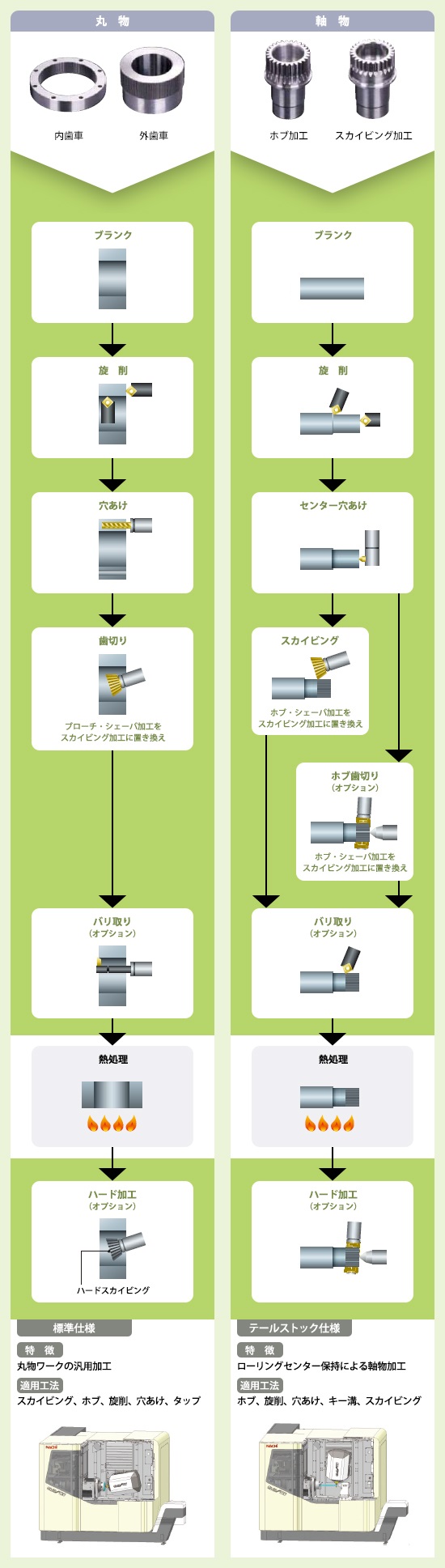

工程集約の提案

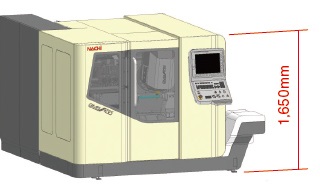

機械高さを抑えコンパクトな機械
- ワーク脱着距離450mm
- ワーク取付け高さ900mm

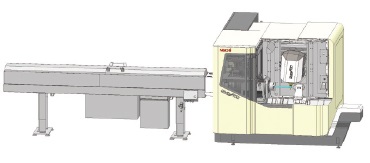

バーフィーダ―仕様
●素材連続共有による旋削＋歯切りの複合可能が可能（Ø24以下）
ATC仕様（6本仕様）
22本ATCも対応可能

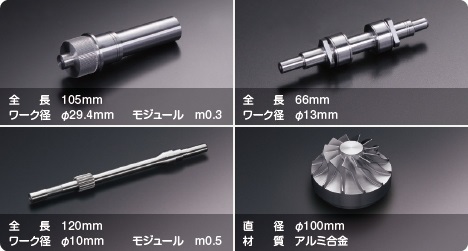

加工事例

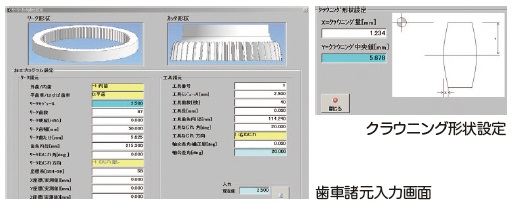

対話型画面による簡単歯切り設定
●スカイビングやホブの対話画面搭載 クラウニング加工などの特殊歯型形状も容易に設定可能 本ソフトのみで歯切り加工条件および補正画面の全てが設定可能

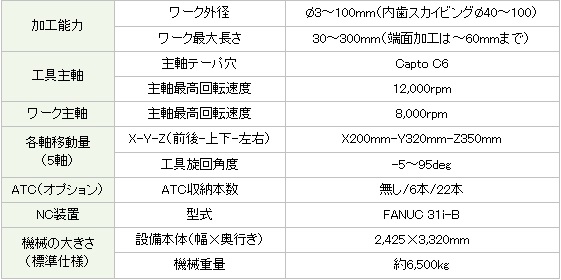

仕様一覧

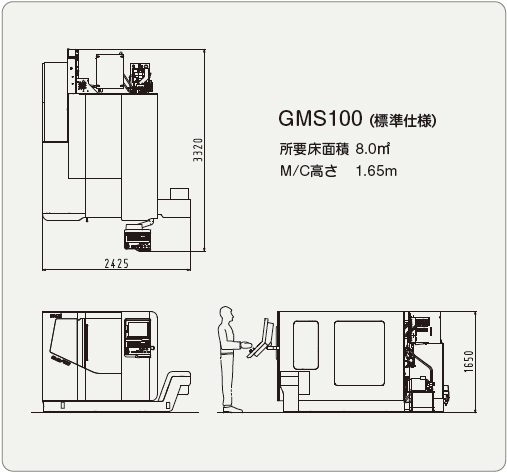

レイアウト図

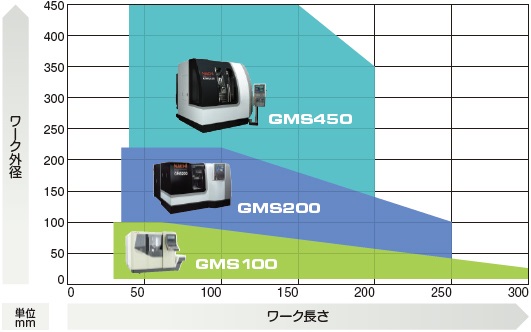

GMSシリーズ対応ワークサイズ

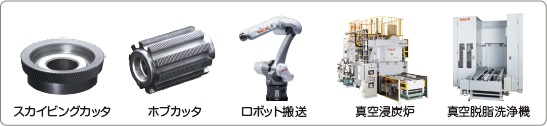

NACHIのトータルソリューション
