スカイビング ギヤシェープセンタ
■スカイビング ギヤシェープセンタ GMS450
●理想を極めた高能率高精度スカイビング加工
- 高能率な歯車スカイビング加工で加工時間を最大1/5に 短縮（ギヤシェーパ加工比）
- 独自の技術により、スカイビング加工機に旋削と穴あけ 機能を付加した歯車複合加工機
- 多種少量生産だけでなく、量産加工にも対応
- コンパクトながら、最大ワーク外径Ø450mmまで対応
- ハードスカイビング加工で焼入れ歯車の高精度加工に 対応
- 対話型の操作画面により､優れたマンマシンインターフェ ースを実現

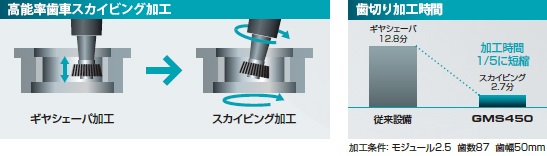

加工時間を最大1/5に短縮（ギヤシェーパ加工比）

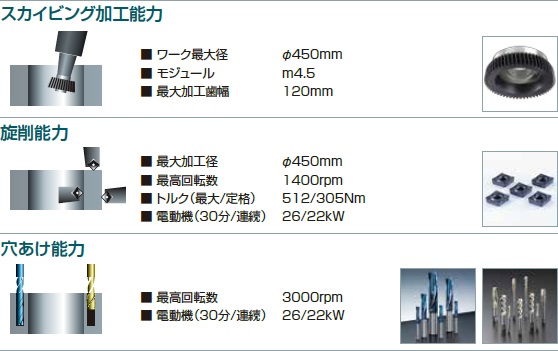

3工程を１台に集約
●スカイビング ギヤシェープセンタGMS450は、高能率歯車スカイビング加工を実現。 加えて、旋削・穴あけ機能を持つ工程集約型歯車スカイビング加工機です。
設置スペース削減からスマートラインの実現へ
●省スペースのスカイビング ギヤシェープセンタにより、歯車加工ラインがスマートラインへ変貌し、多種少 量から量産加工まで、さまざまな生産形態に対応できます。
独自技術によりスカイビング加工機として新設計
●門型コラムの立形マシニングセンタの構造にB軸旋回テーブルを付加したスカイビング加工機
● スカイビング加工向け新設計スピンドル
○ 全軸角スライド
●大径軸受と高トルクダイレクトドライブモータを搭載した高性能スピンドル
工具旋回軸をふくむすべての摺動面は、剛性が高く、減衰性にすぐれた角スライドを採用
●○ X軸、B軸はテーブルクランプ機構を採用

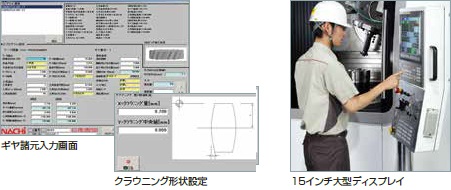

優れた作業性と操作性
●ワーク脱着、段変えが容易
ジグヘの距離が短く、寄付き性が良好

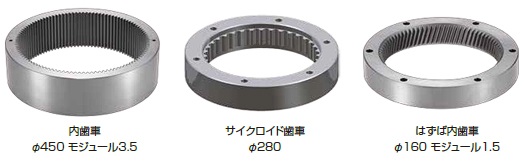

加工事例
スカイビングカッタ
●当社では、ワークの緒元・用途にあわせたスカイビングカッタ及び加工条件を提案いたします。
●NACHIカッタの特長
○ 今まで培ってきた歯車加工技術、工具設計技術を活用し切削メカニズムの 解析を実施。加工ワークの高精度化や工具の長寿命化を実現。 ○ 膜の成分設計と成膜プロセスの最適化に表面改質を加えスカイビング加工 に必要な表面処理技術を確立。 ○ 超硬スカイビングカッタにより、焼後の高精度加工を実現。
●切削工具 スカイビングカッタ 商品ページはこちら
NACHI製ロボットとの組合せ
●NACHI製ロボットとの組合せによりワーク着脱・反転の他に洗浄、バリ取り、検査など、工程スルーで自 動化を実現します。

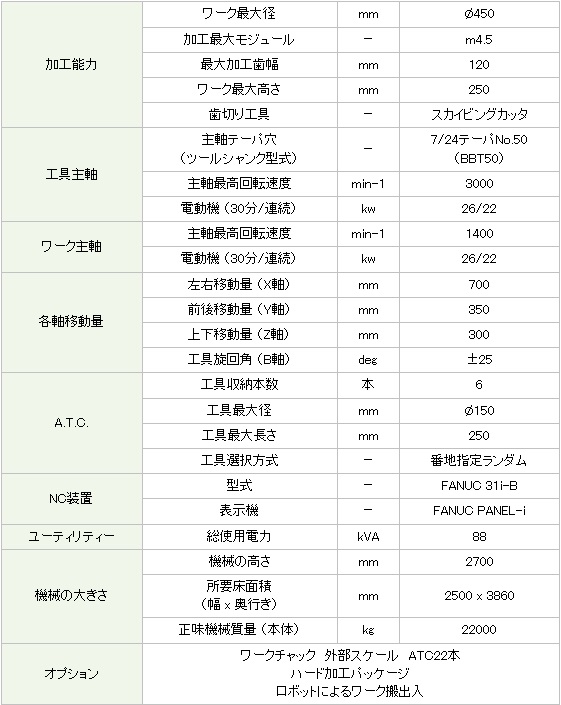

仕様一覧

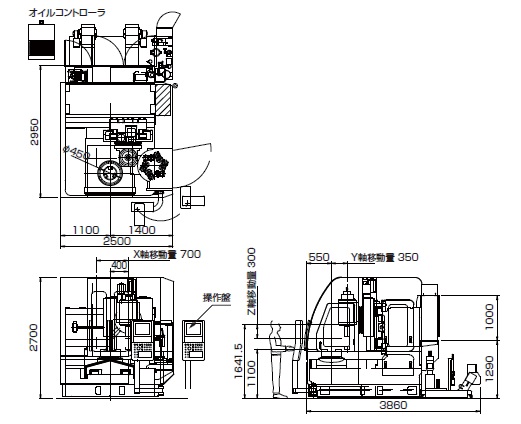

スカイビング ギヤシェープセンタ GMS450 レイアウト

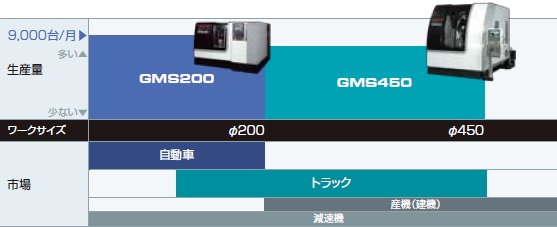

リングギヤ加工機のラインナップ
●スカイビング ギヤシェープセンタ GMS200の仕様はこちら
ATC (22秒)
3工程を1台に集約 (42秒)
ジグへの距離が短く、寄り付き性が良好 (20秒)
