工作機械
研削盤
■ねじ研削盤 GTEシリーズ
●ボールねじから自動車部品まで、多様な加工に応えるNACHIのねじ研削盤
●ねじ研削盤 GTEシリーズ
- ボールねじ、インジェクションスクリュー、丸ダイス等、多様な加工に応えるねじ研削盤
- 優れた機素技術による高精度加工
- 最大センタ間距離800mmの小型機から、5.400mmまでの大型機までをシリーズ化

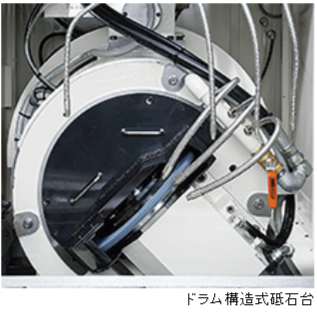

- 高精度送り、ドラム構造式砥石旋回台により高精度加工と高い作業効率を実現
- 静圧主軸や砥石旋回台の自動化等、様々なニーズにも対応可能
●高い汎用性・高精度を実現 GTE-7A
- 対象ワーク径Ø4～200mmの高い汎用性と高精度を実現
- Ø12mm以下の精密ボールねじにも対応
- 省スペース：GTE-10Aに対し45％削減
●生産型ねじ研削盤 GTE-SAシリーズ
- 自動車部品等の少種大量生産用の生産型ねじ研削盤
- 自動クランプ、自動溝合わせ、自動砥石旋回等、各部の自動化により高生産を実現
- 最大センタ間距離200mm、400mmの2機種をシリーズ化。省スペースを実現
ワーク取付け位置まで390mm
●ワーク取付け時に主軸が前側に移動し、機械前面からワーク取付け位置まで390mm。さらに、広い作業 スペースを確保し、手付けラインでの作業性、段替性は抜群です。
高機能なメニュー画面
●加工条件や段替時の加工部位形状の違いによる、加工負荷変化に起因するテーパの修正は、メニュー 画面上の操作のみで可能。機械調整が要りません。 また、新ワークの加工条件は、類似ワークのデータコピーと、変更箇所のデータ入力で設定でき、複数種 ワークの量産加工に最適です。
熱変形に強い特殊ベッド
●熱変位に強い、横型の特殊ベッド構造と、カバー類の工夫により、研削熱の影響を抑制し、常温でも安 定した加工精度を実現。冷却装置も不要です。 また、主軸の高速化、早送り速度の向上、制御装置、ソフトの変更による処理時間の短縮などにより、さ らなるサイクルタイム短縮に貢献します。
仕様一覧

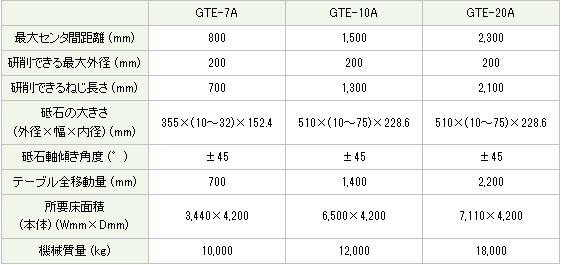

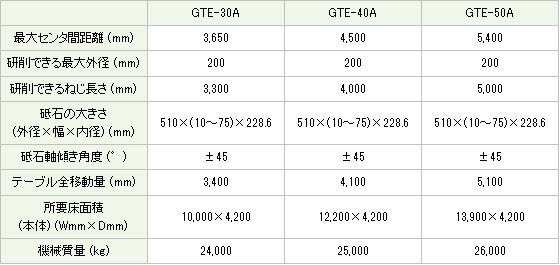

●ねじ研削盤 < GTEシリーズ >

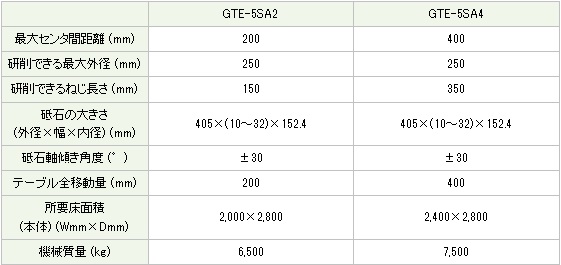

●生産型ねじ研削盤 < GTE-SAシリーズ >
レイアウト図

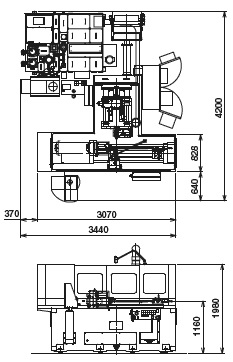

●GTE-7A

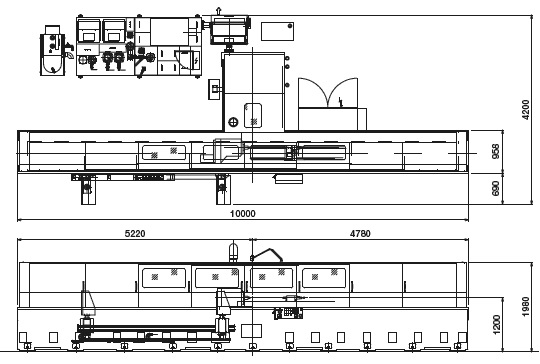

●GTE-30A
●本製品は、外国為替及び外国貿易管理法の規定により、戦略物資など（または役務）に該当します。 日本国外へ輸出する場合は、同法に基づき、日本国政府の輸出許可が必要です。
ねじ研削盤GTE-7A (2分17秒)
