サーモテック
洗浄装置
■真空脱脂洗浄装置 クリーンマスターJ
● 省エネ・環境負荷低減
- 高性能蒸留再生器、ミストトラップ、アフタークーラー、コンデンサーで洗浄液を効率的に回収。洗浄液消費量を低減
- 窒素使用量は1チャージ1Nm3以下
- 省電力モードで待機電力を低減
- スクリュー式ドライ真空ポンプ採用による低騒音設計
● 洗浄液の保有量が従来の5分の1以下
- 独自の洗浄液循環リサイクルシステム（特許出願中）により洗浄液の保有量は従来の5分の1以下の280リットルになり、消防法指定の規制対象外
- 少量危険物貯蔵取扱の届出が不要
● 高性能蒸留再生システムによる低ランニングコスト
- 蒸留再生能力 170L/hr
- 再生純度 99%以上
- 洗浄液の消費量 約150cc/チャージ
● 4つの洗浄機能
- 4つの洗浄機能で製品表面の異物付着を抑制
- 可動式ジェットノズル搭載により洗浄性能を向上
- 粒子状異物の再付着を抑制
● 省スペース
- NVD10-Eと比較して55%のスペースで設置が可能（メンテナンススペース含む）
- オールインワンで搬送据付が容易なため既存設備を簡単に更新可能
4つの洗浄機能
● ジェット
高圧高速噴射により汚れを洗い落とす
- 可動式シャワーノズル
- 動作パターンの任意設定可
- 最高噴射圧力 3MPa
● シャワー
上方から大流量の洗浄液を噴射し大きな汚れを洗い落とす
- 1次シャワー ： 粗洗浄
- リンスシャワー ： 仕上げ洗浄
● スプレー
高圧噴霧の微細化液滴で汚れを洗い落とす
- 洗浄室床面に熱交換器一体型高圧スプレーノズル配置
- 最高吐出圧力 5MPa
● ベーパー
蒸気の洗浄液ですみずみまで洗い落とす
- 洗浄室床面に熱交換器一体型高圧スプレーノズル配置
- 最高吐出圧力 5MPa

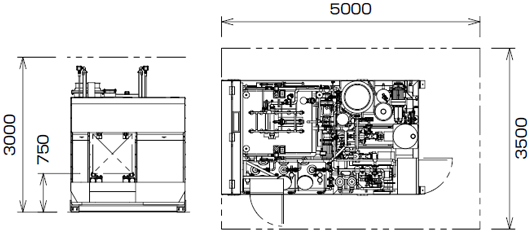

外形寸法図

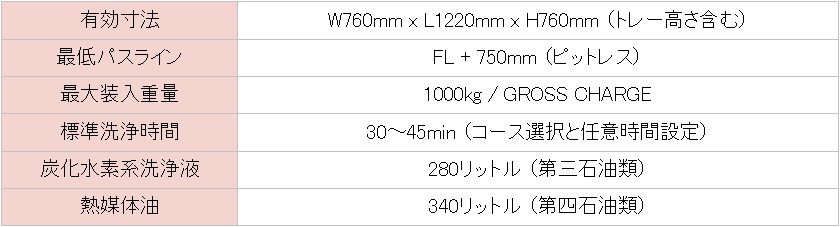

標準仕様
カタログダウンロード
Catalog Download
