■MVP搭載DLCコーティング装置 SMVP-1020
● MVP法*による高密度プラズマで細穴の内面までコーティング
従来の技術では困難であった細穴内面のコーティングを実現し、Ø30mm×500Lmm やØ3mm×100Lmmなどの小径穴内部への成膜品質を確保する。
＊ＭＶＰ(Microwave-sheath Voltage combination Plasma)とは、マイクロ波を利用した成膜技術です。
● コンパクトながら高速外面コーティングで従来と変わらない量産性能
MVP法による高密度プラズマにより、外面コーティングでは最大150µm/hの超高速成膜を実現。標準的な アーク法やスパッタ法による従来機と比較して、成膜速度が30 倍から最大150 倍程度まで向上。
● 少数、多品種にも対応
当社従来機より処理時間を大幅に短縮し、処理条件の切替えも容易なため、少量・多品種の処理に柔軟に対応。また、コンパクトな設計で、２台設置し交互運転することで生産効率がさらに向上。

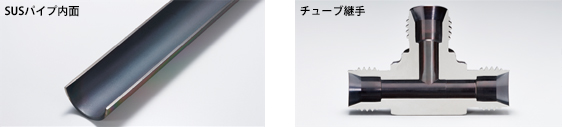

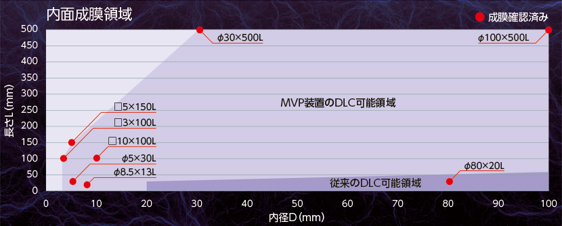

内面コーティングの成膜事例
配管、継手・バルブ、ノズルなどの内面コーティング、プランジャガイド
軸受外輪内面、直動アクチュエータのオネジ・メネジ、オイルホール粉末成型金型の内面コーティング、射出成型機用ブッシュなど

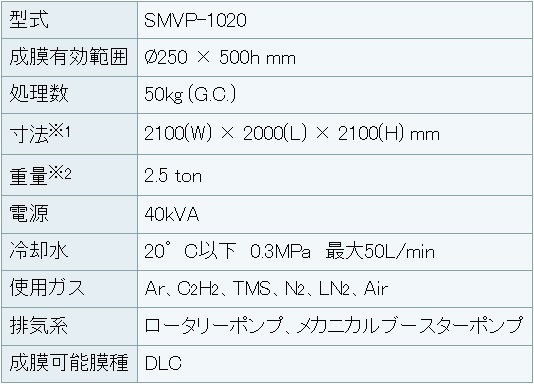

仕様
※1 標準配置図状態での寸法です。
※2 本体、制御盤、電源盤、ポンプ等の総重量です。

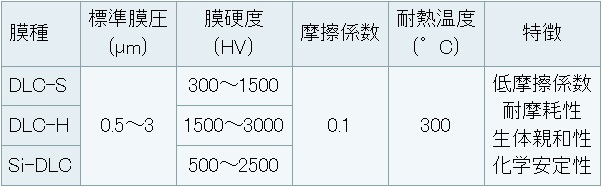

成膜可能膜種

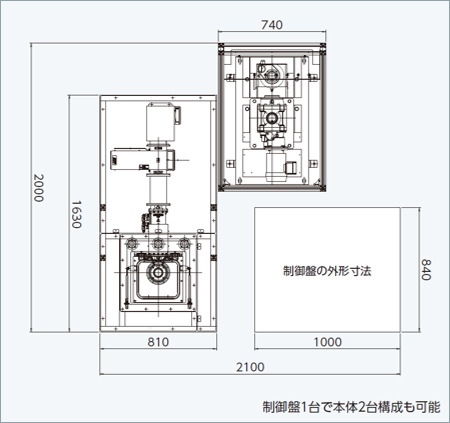

配置図
