商品情報
products
Products
切削工具
超硬エンドミル

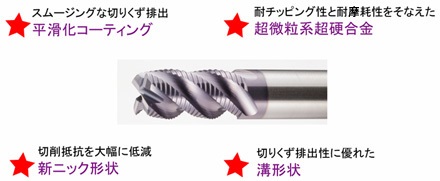

■GSX MILL ラフィング
●高能率粗加工に最適
○ ニック形状の最適設計により切削抵抗を大幅に低減 ○ 高切り込みにおける耐チッピング性の向上で高能率加工 を実現
●切りくず排出性の向上
○ 最適溝形状設計により切りくず排出性の向上
●長寿命
○ 長寿命
●寸法範囲
○ ６φ～１２φ
●適用被削材
○ 軟鋼、炭素鋼、合金鋼、ダイス鋼、プレハードン鋼（～ 50HRC）
平滑化コーティング
●GS コート
●従来コート

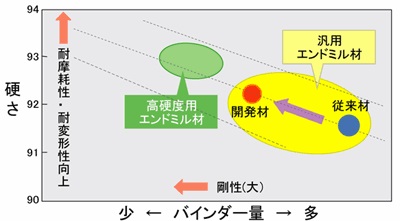

新開発の超硬母材
高剛性と切りくず排出性を両立
SKD11（210HB）溝加工の性能
●切削条件
使用工具 ：φ10 切削速度 ：56.5m/min (1.800min-1) 送り速度 ：730mm/min (0.05mm/tooth) 被削材 ：SKD11 (21HRC) 切削油剤 ：エアブロー 切削深さ ：12m
外周逃げ面摩耗の比較
●切削条件
使用工具 ：φ10 切削速度 ：56.5m/min (1.800min-1) 送り速度 ：730mm (0.05mm/tooth) 被削材 ：SKD11 (21HRC) 切削油剤 ：エアブロー 切削長 ：12m

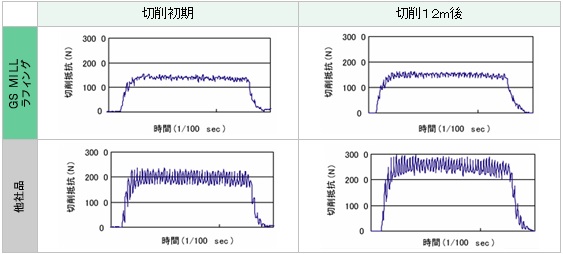

切削抵抗の比較

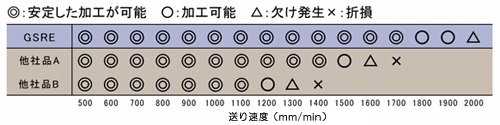

GS MILL ラフィングは送り速度1500mm/min 以上でも安定加工
●切削条件
エンドミル ：10mm 切削速度 ：80m/min (2.550min-1) 被削材 ：SKD11 (220HB) 切削油剤 ：エアブロー
●（この切削条件は折損限界テスト用で実際の切削条件とは異なります。）
送り速度1.200mm/min の溝加工
●gsmillrf_64.ram (260x176 64kbps (242KB)) gsmillrf_512.ram (328x240 512kbps (1.311KB))
●切削条件
エンドミル ：10mm 切削速度 ：90m/min (2.900min-1) 送り速度 ：1.200mm/min (0.1mm/刃) 被削材 ：S50C 切削油剤 ：エアブロー
