Cutting Tools
Carbide Drills
■AQUA Drill EX FLAT Regular / Long Shank
●Developed Long Shank and Regular for Flat drill series
○ 2D flat hole drilling with 10D ejecting length.(industry's longest)
●Applicable for cutting wide range of material
○ From carbon steel to alloy steel. cast iron → Very wide !
○ Solid carbide drill for 4D flat hole.
●Best balanced flute shape for more rigidity and better chip removal
○ Enhanced performance on chip breakage and its emission.
○ Intermediate double margin control generation of hole expansion for high accuracy drilling.

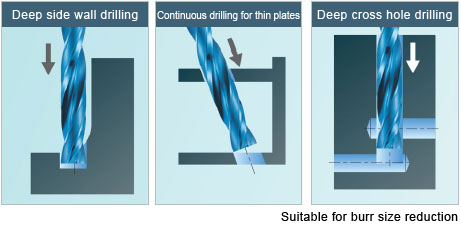

Suitable for drilling on inclined surface at deep at hole position

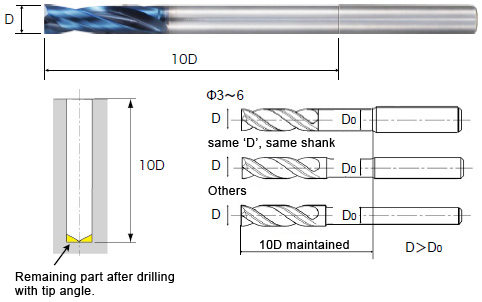

AQUA Drills EX FLAT Long Shank

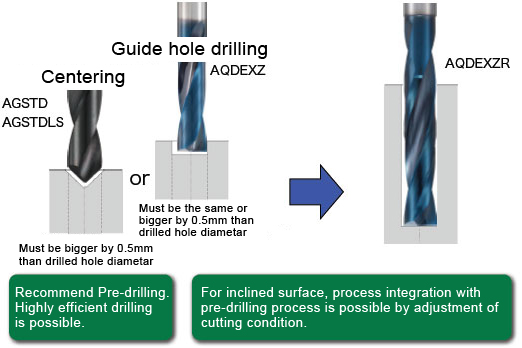

Deep hole drilling with AQUA FLAT Series : Regular

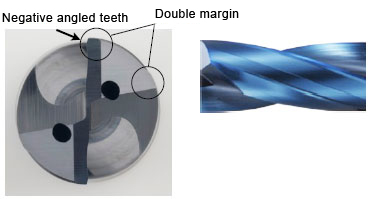

Reduction of hole enlargement
Amount of oversize is reduced due to a double margin and the shape of the negative rake blade tip.

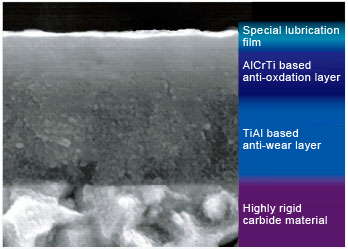

AQUA EX Coating
Improved resistance to oxidation. heat and wear

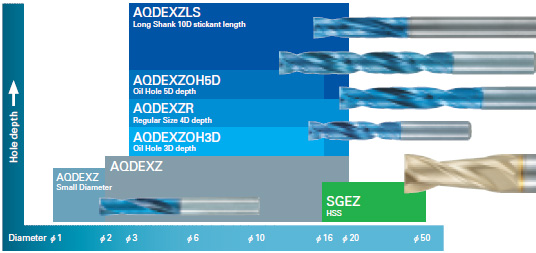

AQUA Drill EX Flat lineup

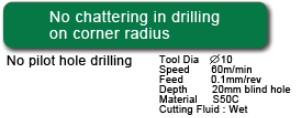

Flat-bottom hole drilling on curved surface in a deep work position

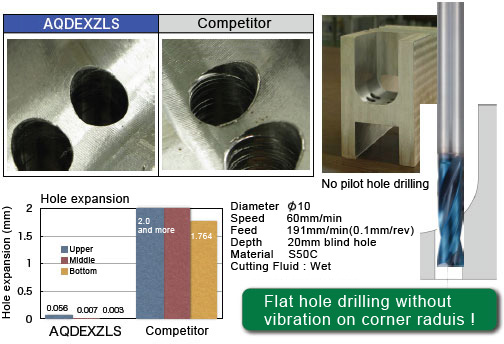

Flat-bottom hole drilling on curved surface : Long Shank

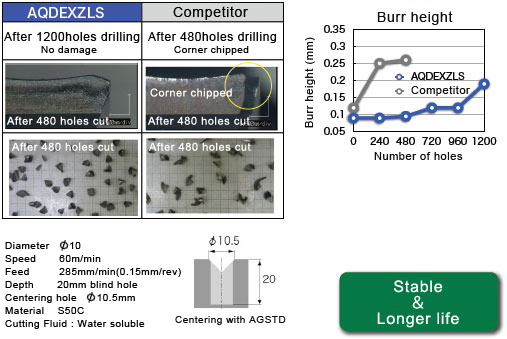

Tool life comparison of carbon steels : Long Shank

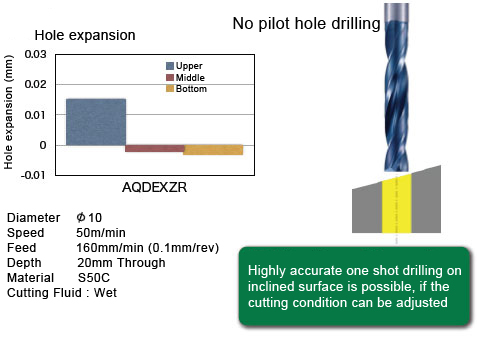

Flat-bottom hole drilling on inclined surface of 30 degrees with depth 4D
Flat-bottom hole drilling on inclined surface of 15 degrees
Machining a hole at gear
