Cutting Tools
HSS Drills
■SG FLAT Drills
● Flat drills made of HSS superior in cost performance
○ Realize stable drilling of larger flat-bottom holes with the adoption of high alloy HSS(FMX) and SG coating. ○ Size range : Ø16 to Ø50
●Well balance between rigidity and chip evacuation with the adoption of optimal flute geometry
○ Restrain hole expansion and realize the drilling of high accurate flat-bottom holes.
●Adoption of Gash land
○ Improve chipping resistance on the corner of cutting edge and realize longer tool life.

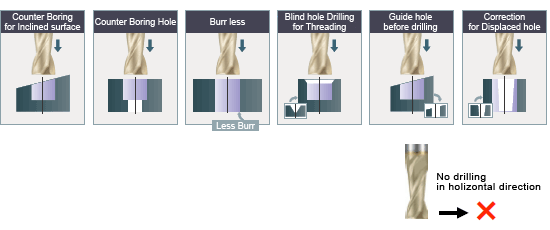

Multi-Function Drills

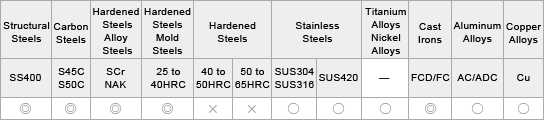

●Applicable work materials

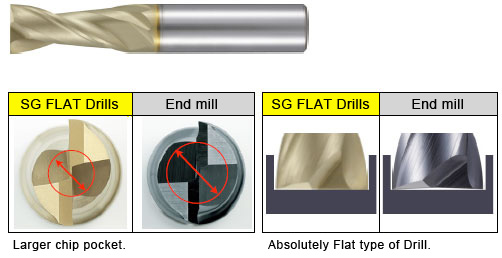

Cutting edge geometry of SG FLAT Drills

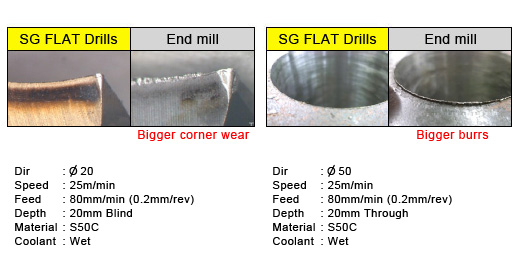

Perfoemance of SG FLAT Drills
Example : Counterboring without pilot hole (Ø50) (Movie)
Example : Counterboring a bolt hole (M30) (Movie)
Counter Boring Hole
>
