ロボット

ハンドリング・シーリング

■10㎏可搬ロングリーチスカラロボット EC10

ワークの重量増加に対応
定格5㎏、最大10㎏/条件付12㎏まで対応
ロングリーチ800／1,000mmのロングリーチ
上下軸の長さを選択可能
200／300mmから選択可能
先端中空構造
中空構造のシャフトを採用することにより、配線の引き回しを簡略化。
設備レイアウトの小型化を実現します。

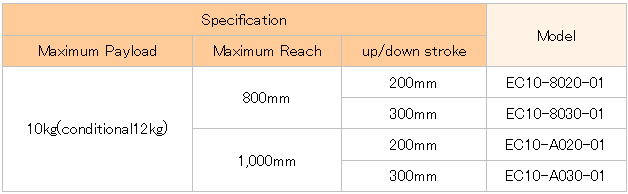

4種類のラインナップ～最大リーチ・上下ストローク別～

最大リーチ800/1,000mm、上下軸の長さ200/300mmから選択可能。
定格5kg、最大10kg、条件付12kgでワークの重量増加に対応。

先端中空構造

中空構造のシャフトを採用することにより、ロボット本体から各種ツールまでの配線引き回しを簡略化。
周辺設備との干渉を回避し、設備レイアウトの小型化を実現します。

アプリケーション例

箱詰め

検査

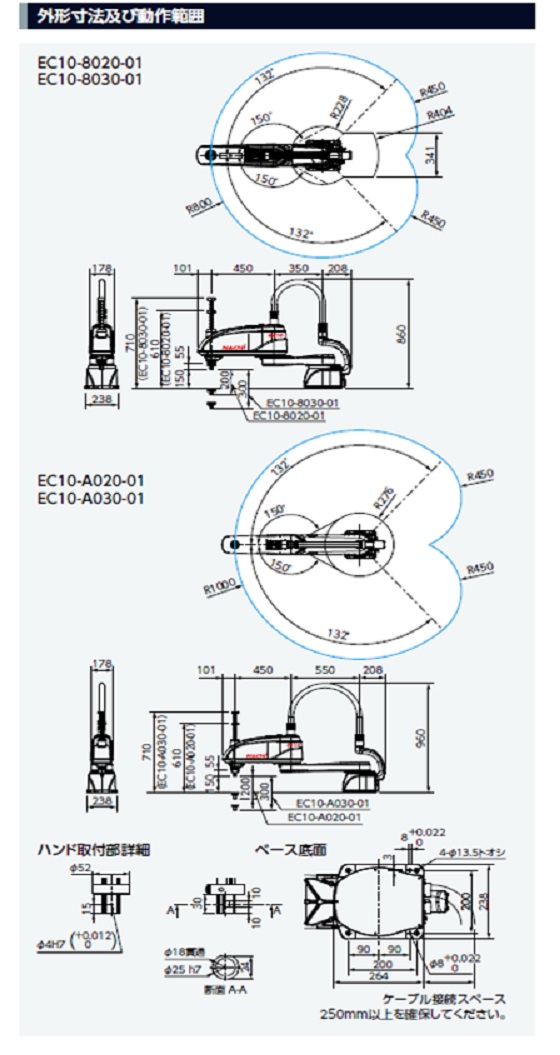

外形寸法および動作範囲

(*1) 製品改良のため、定格、仕様、外寸などの一部を予告なしに変更することがあります。

(*2) 本製品の最終使用者が軍事関係、または兵器等の製造用に使用する場合、「外国為替及び外国貿易法」の定める輸出規制の対象となる事があります。輸出される際には、十分な審査及び必要な輸出手続きをお取り下さい。
