Cutting Tools
Carbide End Mills
■GSX MILL VL
●Endmill with unequal tooth spacing and variable leads
- Periodicity of cutting stress is effectively suppressed by continuously changing outer teeth spacing, allowing for chattering control.
●For titanium alloy and SUS and for steels
- There are two types, for steels and for titanium alloy and SUS that support almost any work materials.
●GSX II coating
- With the multi-layer of heat resistance coating and hard coating, GSX MILL VL supports cutting of hardened materials. With high wear resistance and anti-adhesion properties, stable chip removal is realized for a wide range of work materials.

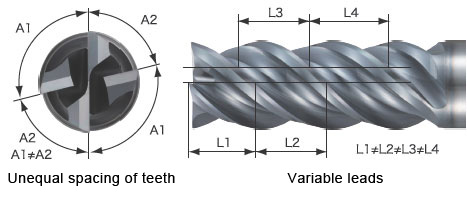

Unequal spacing of teeth · Variable leads
Reduce vibration and realize high quality milling by adapting unequal index and lead design.

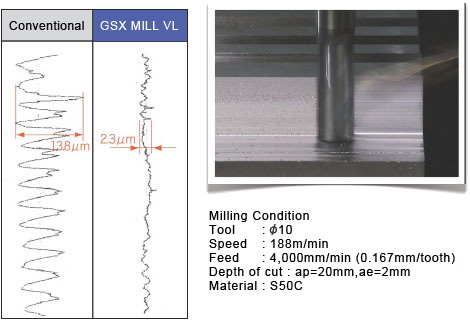

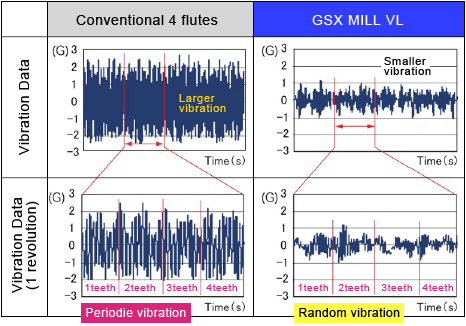

Comparison of vibration

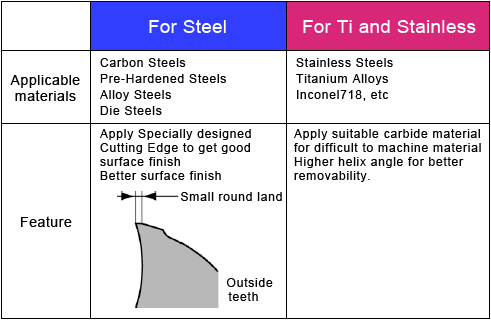

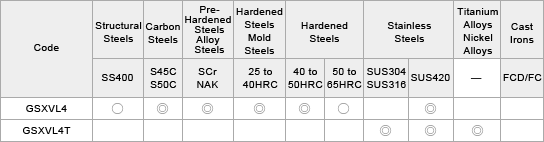

Applicable to wide range of materials by two series
GSX-II Coating
●Excellent heat resistance
- Achieve high heat Resistance with Al-rich composition.
●Multi layer structure
- High hardness of coating in according to multi layer structure with AlCr and AlCrX.
●Crystal structure
- Great wear and resistance with optimum crystal structure.

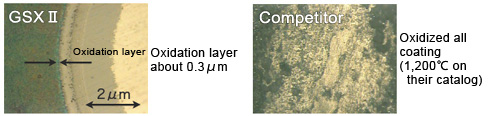

●Evaluation of oxidation resistance
Status of coating films after keeping with 1.100°C in the air after 1 hour.

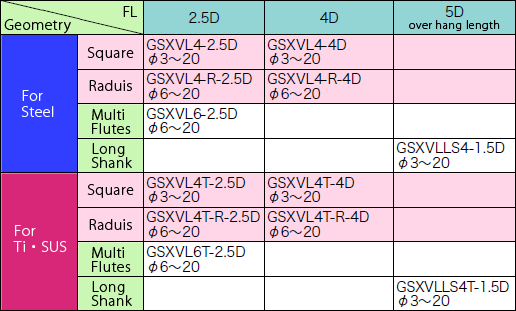

GSX MILL VL Series
GSX MILL VL Anti-Vibration Effect (Movie)
Comparison of surface roughness

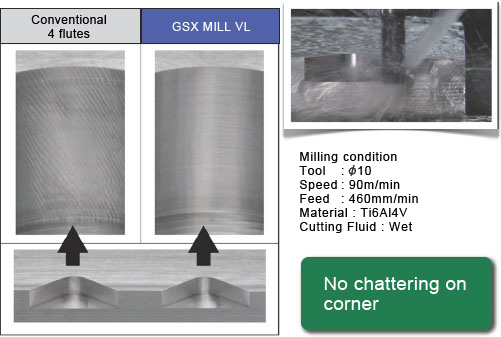

Surface roughness comparison of milling on Titanium alloys

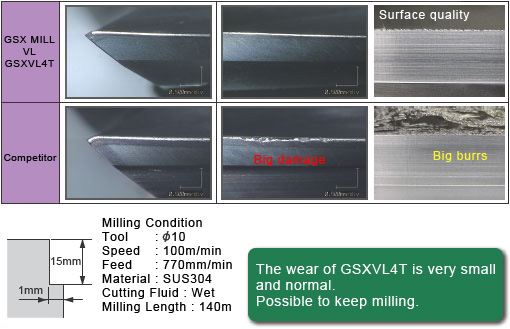

Wear comparison after 140m milling of stainless steels (SUS304)

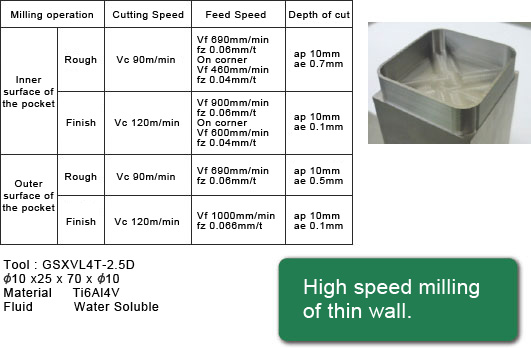

Application example of pocket thin-wall milling of Titanium Alloys

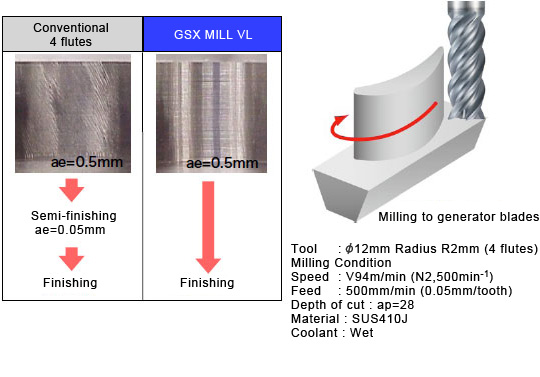

Reduction Process in SUS410J
Introduction
Titanium Alloy Side milling
SUS304 Pocket milling

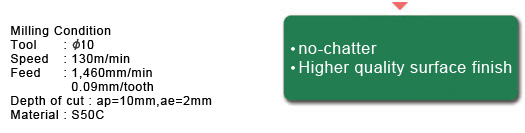

▶Introduction
S50C / SKD61 Side milling / Grooving
▶Titanium Alloy Side milling
S50C Side milling
▶SUS304 Pocket milling
